74HCT373

high-speed, Si-gate CMOS device, DIP, -0.5 to +7 V, ±35 mA, 3-state non-inverting outputs, ESD protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: 74HCT373

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-11

From Other Seller

Part Number:74HCT373
US $1.00 - 2.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

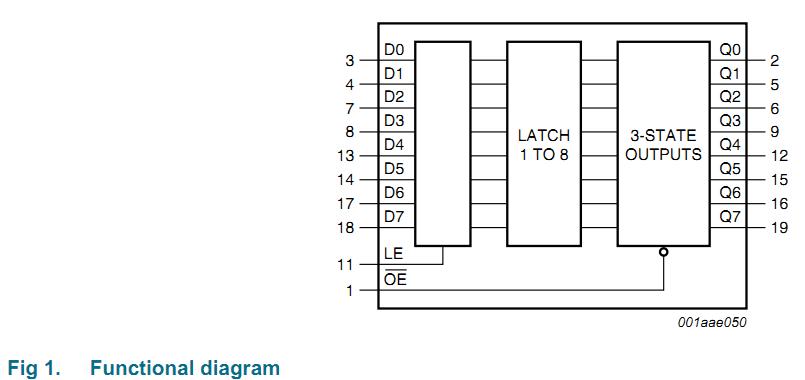

The 74HCT373 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL. It is specified in compliance with JEDEC standard no. 7A. The 74HCT373 is an octal D-type transparent latch featuring separate D-type inputs for each latch and 3-state outputs for bus oriented applications. A latch enable (LE) input and an output enable (OE) input are common to all latches.

Parametrics

74HCT373 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current: ±20 mA max when VI < -0.5 V or VI >VCC +0.5 V; (3)IOK, output clamping current: ±20 mA max when VO <-0.5 V or VO >VCC +0.5V; (4)IO, output current: ±35 mA max when VO = -0.5 V to (VCC +0.5V); (5)ICC, supply current: -70 mA max; (6)IGND, ground current: -70 mA max; (7)Tstg, storage temperature: -65 +150℃; (8)Ptot, total power dissipation: 750 mW.

Features

74HCT373 features: (1)3-state non-inverting outputs for bus oriented applications; (2)Common 3-state output enable input; (3)Functionally identical to the 74HC563; 74HCT563 and 74HC573; 74HCT573; (4)ESD protection: HBM JESD22-A114F exceeds 2 000 V; MM JESD22-A115-A exceeds 200 V; (5)Specified from -40 to+85℃ and from -40 to+125℃.
