Product Summary

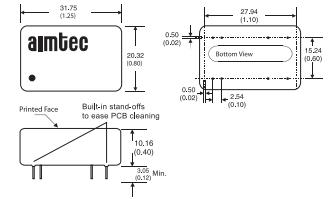

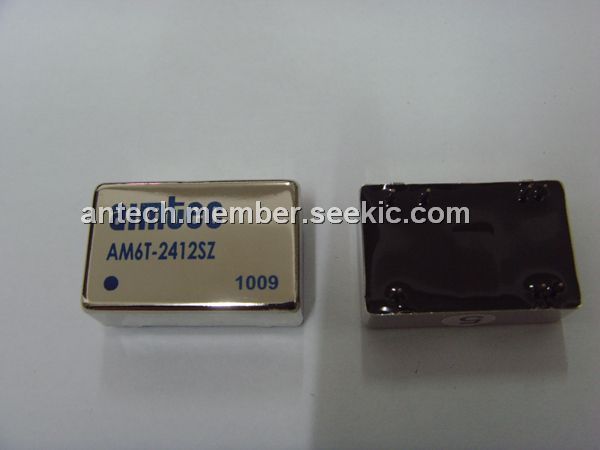

The AM6T-2412SZ is a 6W DC-DC converter. Input voltages of 12, 24 & 48 VDC with output voltages of 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18 & ±24VDC. Full SMD-design and a 100% production test of parameters ensures a high reliability in this product.
Parametrics
AM6T-2412SZ absolute maximum ratings: (1)Operating temperature (ambient):-40℃ to +85℃; (2)Storage temperature:-55℃ to +125℃; (3)Case temperature:+100℃, max.; (4)Voltage accuracy:±1%, max.; (5)Voltage balance (dual outputs):±1%; (6)Ripple & Noise (at 20MHz BW):60mVp-p, max.; (7)Short circuit protection:Continuous; (8)Short circuit restart:Automatic; (9)Line voltage regulation:±0.5%, max.; (10)Load voltage regulation:±0.5%, max.; (11)Temperature coefficient:±0.02%/℃, typ.; (12)Rated Voltage (60 sec):1500 & 3500VDC; (13)Resistance:>1000MOhm; (14)Capacitance:120pF, typ.
Features
AM6T-2412SZ features: (1)24 pin DIP package; (2)wide 2:1 input range; (3)high efficiency up to 79%; (4)low profile metal package; (5)input/output isolation: 1500 & 3500VDC; (6)continuous short circuit protection; (7)operating temperature: -40℃ to +85℃; (8)pin-compatible with multiple manufacturers.
