Product Summary
The BD3816K1 is a 7ch Volume with 7ch input selector.
Parametrics
BD3816K1 features: (1)dynamic range:132dB(Volume direct mode, VOL=MUTE, IHF-A); (2)independent 7 channels for master volume(0 to -95dB, MUTE 1dB/step); (3)low current consumption design achieved by adopting the Bi-CMOS process.
Features
BD3816K1 absolute maximum ratings: (1)power supply voltage:15V; (2)input signal voltage: VCC+0.3V to VEE-0.3V; (3)power disspation:1200mW; (4)operating temperature:-20℃ to +75℃; (5)storage temperature:-55℃ to +125℃.

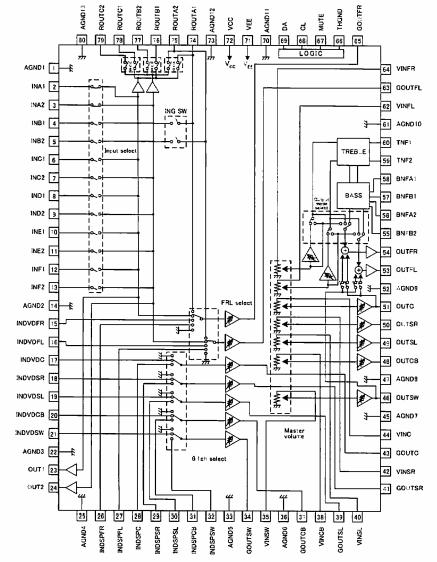

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

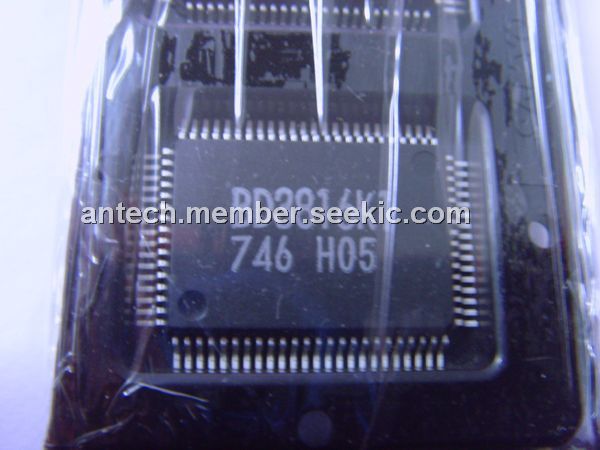

![]() BD3816K1 |
![]() ROHM Semiconductor |
![]() Audio Amplifiers SOUND PROCESSOR 6.1 |
![]() Data Sheet |
![]()
|
|
||||||
