CD54HC00F

logic gate, silicon gate CMOS technology, DIP, -0.5V to 7V, ±20mA, Buffered Inputs, Balanced Propagation Delay

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: CD54HC00F

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-11

From Other Seller

Part Number:CD54HC00F
US $1.00 - 2.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

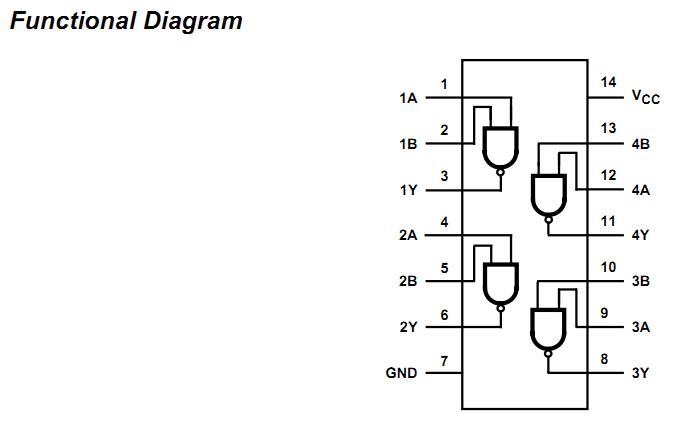

Product Summary

The CD54HC00F is a logic gate utilizing silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. The CD54HC00F has the ability to drive 10 LSTTL loads. The CD54HC00F logic family is functionally pin compatible with the standard 74LS logic family.

Parametrics

CD54HC00F absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V:±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V: ±25mA; (5)DC VCC or Ground Current, ICC or IGND:±50mA.

Features

CD54HC00F features: (1)Buffered Inputs; (2)Typical Propagation Delay: 7ns at VCC = 5V, CL = 15pF, TA = 25℃; (3)Fanout (Over Temperature Range): Standard Outputs: 10 LSTTL Loads; Bus Driver Outputs: 15 LSTTL Loads; (4)Wide Operating Temperature Range: -55℃ to 125℃; (5)Balanced Propagation Delay and Transition Times; (6)Significant Power Reduction Compared to LSTTL Logic ICs; (7)Alternate Source is Philips/Signetics; (8)HC Types: 2V to 6V Operation; High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V; (9)HCT Types: 4.5V to 5.5V Operation; Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min); (10)CMOS Input Compatibility, Il ≤ 1μA at VOL, VOH.
