Product Summary

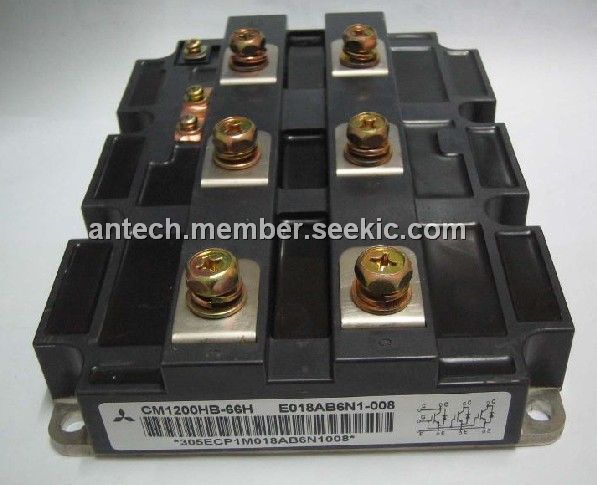

The CM1200HB-66H is a 2nd-version HVIGBT module with high voltage insulated gate bipolar transistor.
Parametrics
CM1200HB-66H absolute maximum ratings: (1)VCES, Collector-emitter voltage when G-E Short: 3300V; (2)VGES, Gate-emitter voltage when G-E Short: ±20V; (3)Tj, Junction temperature: –40 ~ +150℃; (4)Tstg, Storage temperature: –40 ~ +125℃; (5)Weight Typical value: 2.2kg.
Features
CM1200HB-66H features: (1)IC 1200A; (2)VCES 3300V; (3)Insulated Type; (4)1-element in a pack.

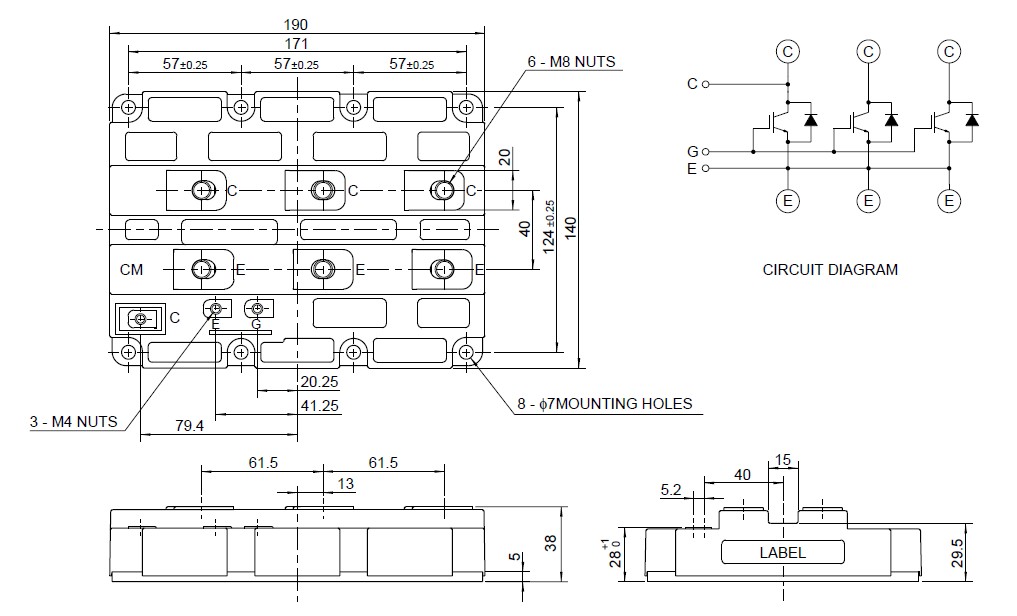

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM1200HB-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||
