Product Summary

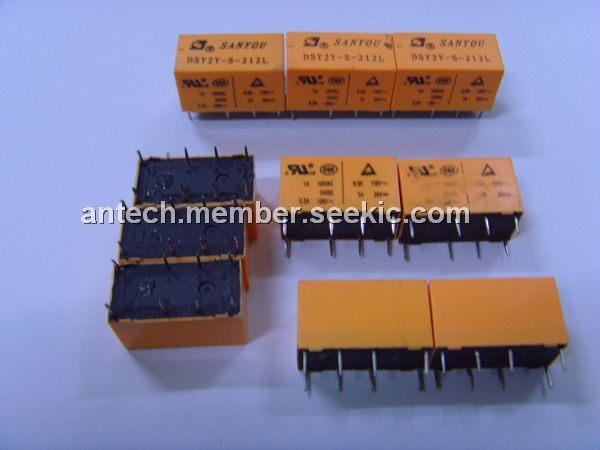

The DSY2Y-S-212L is a 12V miniature power relay. The applications of it are telecommunication equipment, computer peripherals, medical equipment, office equipment, security alarm system.

Parametrics

DSY2Y-S-212L absolute maximum ratings: (1)max. switching current:2A; (2)max. switching voltage:125VAC; (3)max. switching power:120VA; (4)initial contact resistance:100mΩ max.; (5)operate time(at nominal volt.):6msec.max.; (6)release time(at nominal volt.):4msec.max.; (7)initial insulation resistance:1000mΩ min.; (8)ambient temperature:-40℃ to +85℃.

Features

DSY2Y-S-212L features: (1)150mW type availble; (2)2 transfer contact configuration; (3)small size and light weight for high density PCB mounting.

Diagrams

DSY2Y-S-212L circuit diagram
