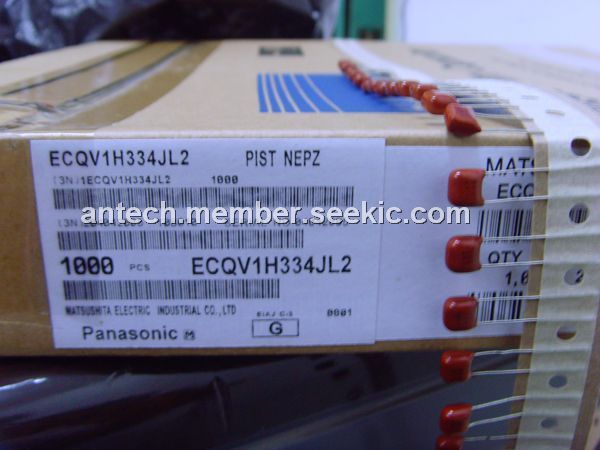

Product Summary

The ECQV1H334JL2 is a Stacked Metallized Plastic Film Capacitor. It is designed for high density insertion applications. The applications of it are General purpose and Noise suppression for logic circuit.

Parametrics

ECQV1H334JL2 general specifications: (1)Category temp. range(Including temperature-rise on unit surface):-40℃ to +105℃; (2)Rated voltage:50 VDC, 63 VDC, 100 VDC; (3)(Derating of rated voltage by 2.5 %/℃ at more than 85℃); (4)Capacitance range:0.010 μF to 2.2 μF ; (5)Capacitance tolerance:±5 %(J) ; (6)Dissipation factor (tan):tan≤1.0% (20℃, 1 kHz) ; (7)Withstand voltage:Between terminals:Rated volt.(VDC)*150 % 60s.

Features

ECQV1H334JL2 features: (1)Small size and large capacitance; (2)Excellent electric characteristics in non-inductive construction; (3)Wide range for automatic insertion; (4)RoHS directive compliant.

Diagrams

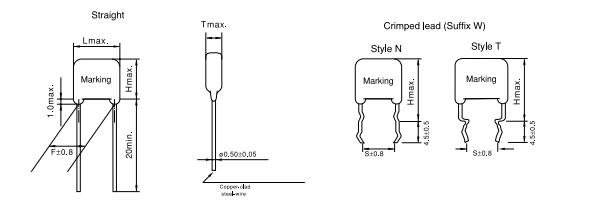

ECQV1H334JL2 package dimensions

ECQV
ECQV
