Product Summary

The EP82562GT is a Platform LAN Connect (PLC). It is a highly-integrated device designed for 10 or 100 Mbps Ethernet systems. The EP82562GT is based on the IEEE 10BASE-T and 100BASE-TX standards. The IEEE 802.3u standard for 100BASE-TX defines networking over two pairs of Category 5 unshielded twisted pair cable or Type 1 shielded twisted pair cable. The EP82562GT complies with the IEEE 802.3u Auto-Negotiation standard and the IEEE 802.3x Full Duplex Flow Control standard. The device also includes a PHY interface compliant to the current platform LAN connect interface.

Parametrics

EP82562GT absolute maximum ratings: (1)Case Temperature under Stress:0℃ to 135℃; (2)Storage Temperature:-65℃ to 150℃; (3)Supply Voltage with respect to VSS:-0.5 V to 3.45 V; (4)Output Voltages:-0.50 V to 3.45 V; (5)Input Voltages:VCC to 3.45 V.

Features

EP82562GT features: (1)IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface; (2)IEEE 802.3u Auto-Negotiation support; (3)Digital Adaptive Equalization control; (4)Link status interrupt capability; (5)XOR tree mode support; (6)3-port LED support (speed, link and activity); (7)10BASE-T auto-polarity correction; (8)LAN Connect Interface; (9)PHY detects polarity, MDI-X, and cable lengths. Auto MDI, MDIX crossover at all speeds; (10)Diagnostic loopback mode; (11)1:1 transmit transformer ratio support; (12)Low power (less than 300 mW in active transmit mode); (13)Reduced power in “unplugged mode” (less than 50 mW); (14)Automatic detection of “unplugged mode”; (15)3.3 V device.

Diagrams

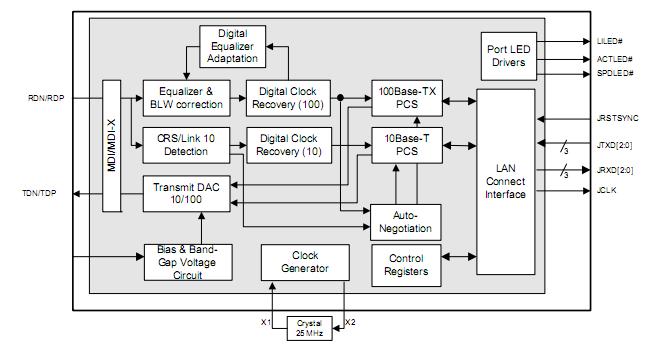

EP82562GT block diagram

EP82562ET
EP82562ET

Intel

IC PLAT/LAN CONNECT CTRL 48SSOP

Data Sheet
