Product Summary

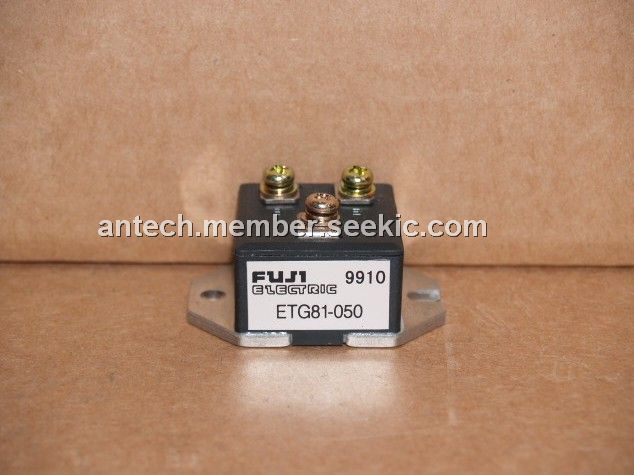

The ETG81-050 is a power transistor module. The applications of the ETG81-050 are: Power switching, AC motor controld, DC motor controls, Uninterruptible power supply.
Parametrics
ETG81-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO: 450V; (4)VEBO: 6V; (5)IC: 30A; (6)ICP: 60A; (7)IC: 30A; (8)IBP: 4A; (9)Tj: +150℃; (10)Tstg: -40 to +125℃; (11)Viso: 2000V.
Features
ETG81-050 features: (1)Including free wheeling diode; (2)High DC current gain; (3)Insulated type.
Diagrams
