Product Summary

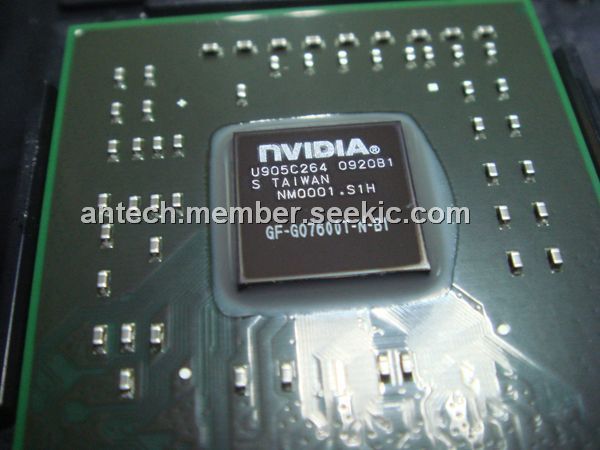

The GF-G07600T-N-B1 is a graphic chipset with a middle class video card of the 7000 series and suited for current games (in 2006). It offers a good relation of performance and heat. The performance is very similar to ATI X1600. Compared to the desktop 7600, the GF-G07600T-N-B1 offers 8 instead of 12 pixel-pipelines and therefore is clearly slower. The GF-G07600T-N-B1 features a so called PureVideo Engine, which is capable of hardware acceleration of H.264 (not as fast as the 8600M series), WMV, and MPEG-2 videos.

Parametrics

GF-G07600T-N-B1 general specifications: (1)Manufacturer NVIDIA; (2)Standard Package BGA; (3)Category Integrated Circuits (ICs); (4)Family STEPPER MOTOR DRIVER; (5)Series - Type Step-Down (Buck); (6)Internal Switch(s) Yes; (7)Synchronous Rectifier No; (8)Number of Outputs 1; (9)Output Voltage:3V; (10)Output Current:1A; (11)Switching Frequency:1.6MHz; (12)Input Voltage: -0.3 to 7V; (13)Operating Temperature -40℃ to 125℃; (14)Mounting Type Surface Mount; (15)Packaging:Tape & Reel (TR).
