Product Summary

The SB600 218S6ECLA21FG is a south bridge IC chipset that integrates Key I/O, communications, and audio features required in a state of the art PC into a single device. The SB600 218S6ECLA21FG is specifically designed to operate with AMD families of integrated graphics processors (IGPs) in desktop and mobile PCs.

Parametrics

SB600 218S6ECLA21FG absolute maximum ratings: (1)VDD: -0.5 to 1.32 V; (2)VDDQ: -0.5 to 3.66 V; (3)PCIE PVDD: -0.5 to 1.32 V; (4)PCIE VDRR: -0.5 to 1.32 V; (5)AVDD SATA: -0.5 to 1.32 V; (6)AVDDC: -0.5 to 3.66 V; (7)USB PHY: -0.5 to 1.32 V; (8)V5 VREF: -0.5 to 5.5V; (9)Any 3.3V input signal: -0.5 to 3.66V; (10)Any 3.3V 5V tolerant input signal: -0.5 to VREF+0.5V.

Features

SB600 218S6ECLA21FG features: (1)1/2/4-lane A-Link Express II interface; (2)Dynamic detection of lane configuration; (3)High data transfer bandwidth; (4)Supports PCI Rev. 2.3 specification; (5)Supports PCI bus at 33MHz; (6)Supports up to 6 bus master devices; (7)Supports 40-bit addressing; (8)Supports interrupt steering for plug-n-play; (9)devices; (10)Supports concurrent PCI operations; (11)Supports hiding of PCI devices by; (12)BIOS/hardware; (13)Supports spread spectrum; (14)SMBus Rev. 2.0 compliant; (15)Support SMBALERT # signal / GPIO; (16)Two cascaded 8237 DMA controllers; (17)Supports PC/PCI DMA; (18)Supports LPC DMA; (19)Supports type F DMA.

Diagrams

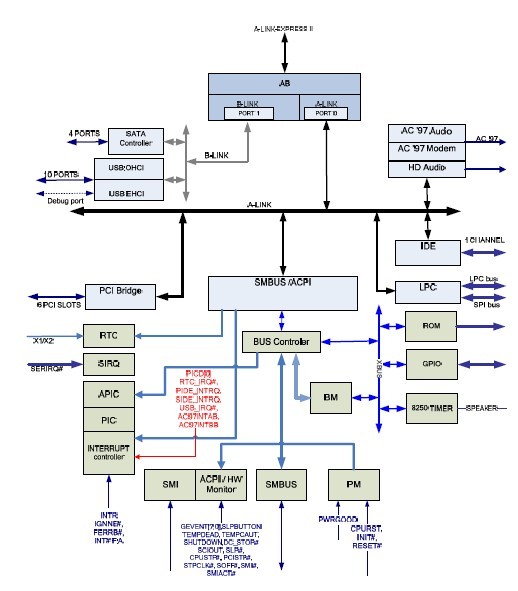

SB600 218S6ECLA21FG block diagram
