Product Summary

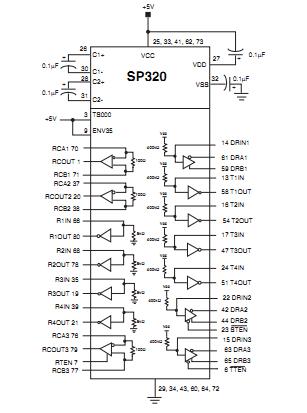

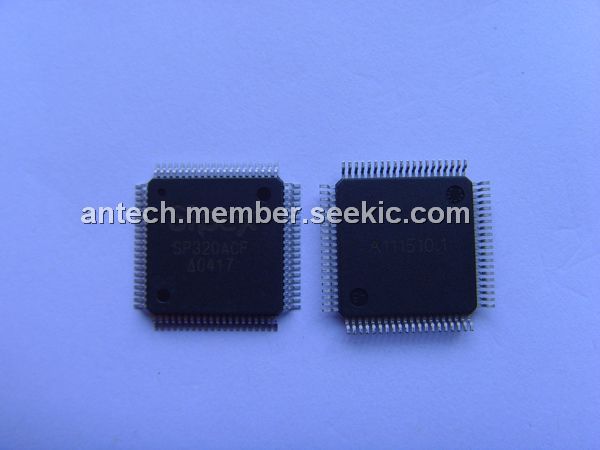

The SP320ACF is a complete V.35 interface transceiver. The SP320ACF can offere 3 drivers and 3 receivers of V.35, and 4 drivers and 4 receivers of RS-232 (V.28). A Sipex patented charge pump allows +5V only low power operation. RS-232 drivers and receivers are specified to operate at 120kbps, all V.35 drivers and receivers operate up to 5Mbps.
Parametrics
SP320ACF absolute maximum ratings: (1)VCC: +7V; (2)Input Voltages, Logic: -0.3V to (VCC+0.5V); Drivers: -0.3V to (VCC+0.5V); Receivers: ±30V at ≤100mA; (3)Output Voltages, Logic: -0.3V to (VCC+0.5V); Drivers:±14V; Receivers: -0.3V to (VCC+0.5V); (4)Storage Temperature: -65 to +150℃; (5)Power Dissipation: 1500mW; (6)Package Derating; (7)θJC: 16 ℃/W; (8)θJA: 46 ℃/W.
Features
SP320ACF features: (1)10Mbps Data Throughput; (2)+5V-Only, Single Supply Operation; (3)3 Drivers, 3 Receivers – V.35; (4)4 Drivers, 4 Receivers – RS-232; (5)80-pin MQFP Surface Mount Packaging; (6)Pin Compatible with SP319.
