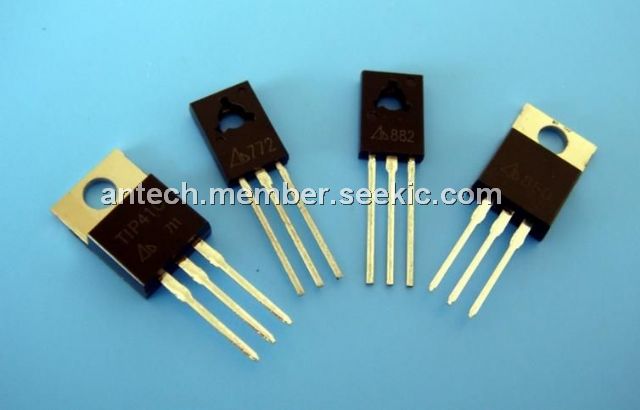

Product Summary

The TIP41C is a silicon Epitaxial-Base NPN power transistor mounted in Jedec TO-220 plastic package. It is intented for use in medium power linear and switching applications.

Parametrics

TIP41C absolute maximum ratings: (1)Collector-Base Voltage (IE = 0): 100 V; (2)Collector-Emitter Voltage (IB = 0): 100 V; (3)Emitter-Base Voltage (IC = 0): 5 V; (4)Collector Current: 6 A; (5)Collector Peak Current: 10 A; (6)Base Current: 3 A; (7)Total Dissipation at Tcase ≤ 25 ℃: 65 W, Tamb ≤ 25 ℃: 2 W; (8)Storage Temperature: -65 to 150 ℃; (9)Max. Operating Junction Temperature: 150 ℃.

Features

TIP41C electrical characteristics: (1)Collector Cut-off Current (IB = 0): 0.7 mA; (2)Collector Cut-off Current (VBE = 0): 0.4 mA; (3)Emitter Cut-off Current (IC = 0): 1 mA at VEB = 5 V; (4)Collector-Emitter Sustaining Voltage (IB = 0): 100 V; (5)Collector-Emitter Saturation Voltage: 1.5 V at IC = 6 A, IB = 0.6 A; (6)Base-Emitter Voltage: 2 V at IC = 6 A, VCE = 4 V; (7)DC Current Gain: 30 at IC = 0.3 A, VCE = 4 V.

Diagrams

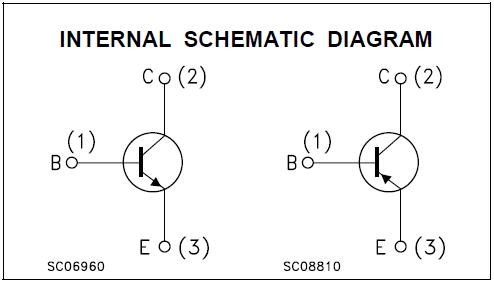

TIP41C internal schematic diagram
