Product Summary

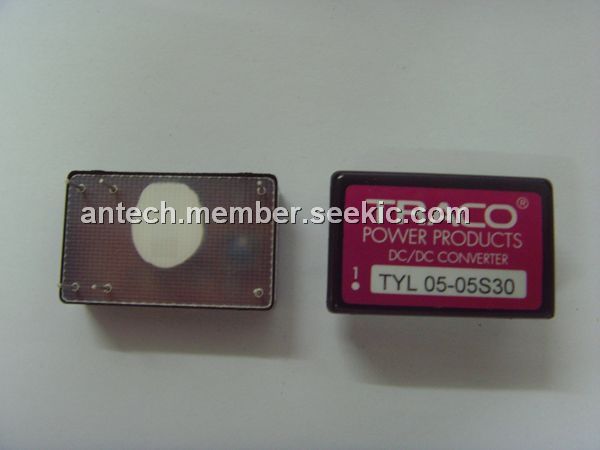

The TYL05-05S30 is a DC/DC-Converter with very low output ripple and noise specification. The TYL05-05S30 is an ideal solution for noise sensitive applications as analoge circuits, audio applications, reference voltages or mesuring systems. SMD-technology and a 100% production test ensure a very high reliability of these products.
Parametrics
TYL05-05S30 general specifications: (1)Temperature ranges:Operating:-25℃ to +71℃, Storage:-45℃ to +85℃; (2)Derating 3%/℃ above 50℃; (3)Efficiency 60%; (4)Humidity (non condensing):30 to 95 % rel H max.; (5)Isolation voltage Input/Output:500 VDC; (6)Isolation capacity Input/Output:100 pF; (7)Isolation resistance Input/Output (500 VDC):＞ 10 M Ohm; (8)Switching frequency: 70 to 400 kHz depending on load; (9)Vibration:5 to 10 Hz amplitude 10 mm pk-pk 10 to 55 Hz acceleration 2 G; (10)Shock:acceleration 20 G max. time 11 ms.
Features
TYL05-05S30 features: (1)Ultra low Ripple and Noise; (2)Full SMD-Design with Ceramic Capacitores; (3)Tightly regulated Outputs; (4)High Output Stability; (5)Short Circuit Protection; (6)Shielded Metal Case; (7)Single- and Dual Output Models; (8)2 Year Product Warranty.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TYL05-05S30 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TYL05-05S30 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TYL05-05W08 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TYL05-12S12 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TYL05-12W06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TYL05-15S10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TYL05-15W05 |
Other |
|
Data Sheet |
Negotiable |
|
||||
