Product Summary

The ULN2003ADR is a high-voltage high-current Darlington transistor array. The ULN2003ADR consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The applications of the ULN2003ADR include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.

Parametrics

ULN2003ADR absolute maximum ratings: (1)Collector-emitter voltage:50V; (2)Clamp diode reverse voltage:50V; (3)Input voltage:30V; (4)Peak collector current:500mA; (5)Output clamp current:500mA; (6)Total emitter-terminal current:-2.5A; (7)Operating free-air temperature range:-20℃ to 70℃; (8)Package thermal impedance:36℃/W; (9)Operating virtual junction temperature:150℃; (10)Lead temperature for 1.6 mm (1/16 inch) from case for 10 seconds:260℃; (11)Storage temperature range:–65℃ to 150℃.

Features

ULN2003ADR features: (1)500-mA-Rated Collector Current (Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications.

Diagrams

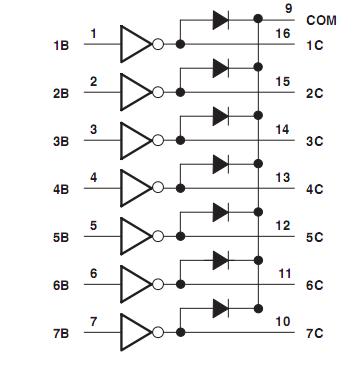

ULN2003ADR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ULN2003ADR
ULN2003ADR

Texas Instruments

Transistors Darlington Darlington

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.09
100-250: $0.09
ULN2003ADR2G
ULN2003ADR2G

ON Semiconductor

Transistors Darlington DARLINGTON TRNS ARRY

Data Sheet

0-1: $0.58
1-25: $0.45
25-100: $0.39
100-250: $0.34
ULN2003ADRG3
ULN2003ADRG3

Texas Instruments

Transistors Darlington Hi-Vltg,Hi-Current Darl Trans Array

Data Sheet

0-1: $0.33
1-25: $0.23
25-100: $0.20
100-250: $0.17
ULN2003ADRE4
ULN2003ADRE4

Texas Instruments

Transistors Darlington Darlington

Data Sheet

0-1: $0.34
1-25: $0.21
25-100: $0.18
100-250: $0.16
ULN2003ADRG4
ULN2003ADRG4

Texas Instruments

Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays

Data Sheet

0-1: $0.39
1-25: $0.24
25-100: $0.21
100-250: $0.18
