Product Summary
The AD96687BQ is a ultrafast comparator. The AD96687BQ is a single comparator with 2.5 ns propagation delay. It features 50 ps propagation delay dispersion which is a particularly important characteristic of high-speed comparators. It is a measure of the difference in propagation delay under differing overdrive conditions.
Parametrics
AD96687BQ absolute maximum ratings: (1)Positive Supply Voltage (+VS): 6.5 V; (2)Negative Supply Voltage (–VS): –6.5 V; (3)Input Voltage Range: ±5 V; (4)Differential Input Voltage: 5.5 V; (5)Latch Enable Voltage: –VS to 0 V; (6)Output Current: 30 mA; (7)Operating Temperature Range: –25℃ to +85℃; (8)Storage Temperature Range: –55℃ to +150℃; (9)Junction Temperature: 175℃; (10)Lead Soldering Temperature (10 sec): 300℃.
Features
AD96687BQ features: (1)Fast: 2.5 ns Propagation Delay; (2)Low Power: 118 mW per Comparator; (3)Packages: DIP, SOIC, PLCC; (4)Power Supplies: +5 V, –5.2 V; (5)Logic Compatibility: ECL; (6)50 ps Delay Dispersion.

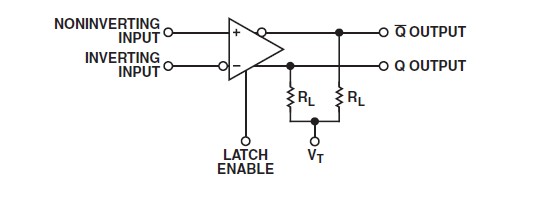

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

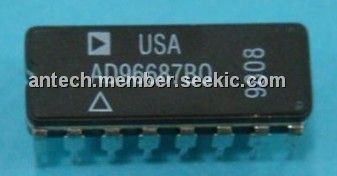

 AD96687BQ |
|
IC COMP DUAL 2.5NS 16-CDIP |
Data Sheet |
|
|
||||||||||||||||
