Product Summary
The JW030D8-M Power Module is a dc-dc converter that operates over an input voltage range of 18 Vdc to 36 Vdc and provides precisely regulated 2 V, 5 V, 12 V, and 15 V outputs. The outputs are isolated from the inputs, allowing versatile polarity configurations and grounding connections. The JW030D8-M has maximum power ratings of 30 W at a typical full-load efficiency of 81%. The power JW030D8-M features remote on/off, output sense (both negative and positive leads), and output voltage adjustment, which allows output voltage adjustment from 60% to 110% (80% to 110% for the JW030D8-M) of the nominal output voltage. For disk-drive applications, the JW030D8-M Power Module provides a motor-start surge current of 3 A. The JW030D8-M is PC-board mountable and encapsulated in metal cases. The JW030D8-M is rated to full load at 100 ℃ case temperature with no external filtering.
Parametrics
JW030D8-M absolute maximum ratings: (1)Input Voltage (continuous) VI: 50 Vdc; (2)Operating Case Temperature, TC: -40 to 100 ℃; (3)Storage Temperature Tstg: -40 to 110 ℃; (4)I/O Isolation Voltage: dc: 500V; Transient (1 min): 850Vdc.
Features
JW030D8-M features: (1)Low output noise; (2)Constant frequency; (3)Industry-standard pinout; (4)Metal case; (5)2:1 input voltage range; (6)High efficiency: 81% typical; (7)Overcurrent protection; (8)Remote on/off; (9)Remote sense; (10)Adjustable output voltage; (11)Output overvoltage protection; (12)Case ground pin.

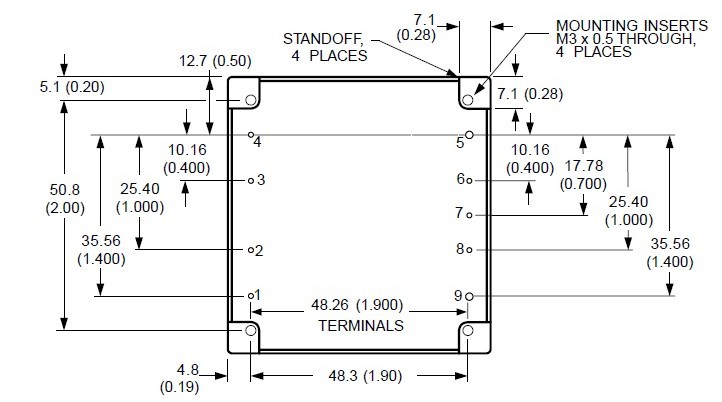

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 JW030D8-M |
Other |
|
Data Sheet |
Negotiable |
|
||||
