Product Summary

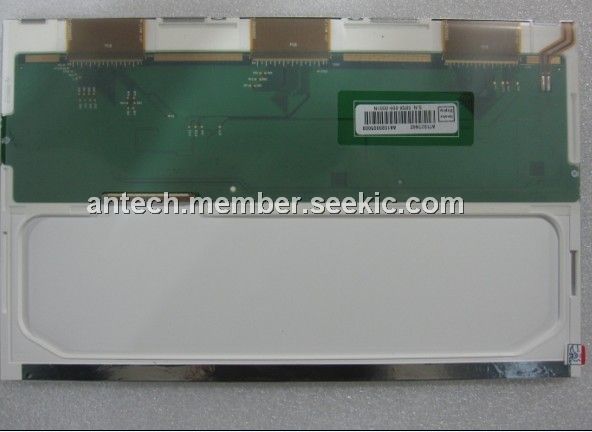

The AT102TN42 is a 10.2 inch LCD screen.
Parametrics
AT102TN42 typical operation conditions: (1)Power Voltage: VCC: 3.1v min, 3.3v typ, 3.5 V max; VLED: 4.8v min, 5.0v typ v, 5.2 V max; (2)Current Consumption: ICC: 370mA min, 420 mA max; ILED: 700mA typ, 850 mA max; (3)Differential Input High Threshold, VTHLVDS: 100.0 mV max at Vcm=1.2V; (4)Differential Input Low Threshold, VTLLVDS: -100.0 mV min; (5)LVDS Receiver Input Current, IIN: ±10.0 μA max at VIN=2.4V or 0V, VCC =3.6V; (6)LVDS Receiver Input Common Voltage, VCM: 0.2 to 1.9 V at VCC =3.3V, Ta=+25℃; (7)LED life time: 10,000 Hr min.
Features
AT102TN42 specifications: (1)Brand:INNOLUX; (2)LCD Size (mm): 10.2; (3)LCD Model:AT102TN42; (4)LCD Resolution:1024 x600; (5)LCD Display Area (mm):221.7984(W) x 131.52 (H); (6)Pixel Pitch (mm):0.0722(W) x 0.2192(H); (7)Viewing Angle (H/V):80/80/70/80; (8)Brightness (cd/M2):200; (9)Contrast Ratio:500 :1; (10)Response Time (ms):25; (11)Interface:Digital((LVDS)); (12)Backlight:LED.
Diagrams
 |
