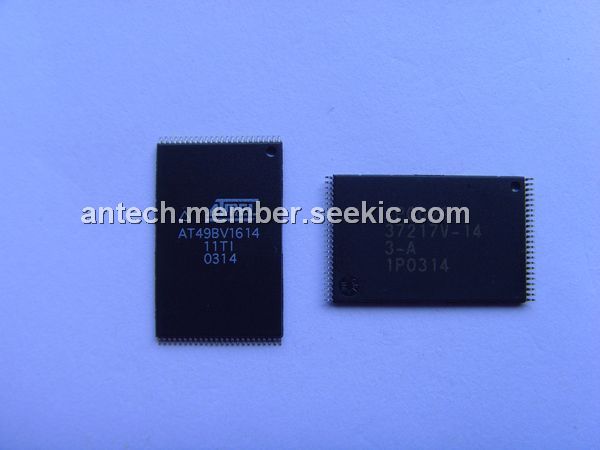

AT49BV1614-11TI

48TSOP, 16-megabit, 3-volt Only Flash Memory, Low-power Operation, Erase Suspend Capability

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: AT49BV1614-11TI

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:AT49BV1614-11TI
US $1.00 - 2.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49BV1614-11TI is a 16-megabit Flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The AT49BV1614-11TI is divided into 40 sectors for erase operations. The device is offered in 48-pin TSOP and 48-ball μBGA packages. It can be read or reprogrammed using a single 2.7V power supply, making it ideally suited for in-system programming. The AT49BV1614-11TI is segmented into two memory planes.

Parametrics

AT49BV1614-11TI absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT49BV1614-11TI features: (1)2.7V to 3.3V Read/Write; (2)Access Time:90 ns; (3)Sector Erase Architecture:Thirty 32K Word (64K Byte) Sectors with Individual Write Lockout, Eight 4K Word (8K Byte) Sectors with Individual Write Lockout, wo 16K Word (32K Byte) Sectors with Individual Write Lockout; (4)Fast Word Program Time:20 μs; (5)Fast Sector Erase Time:200 ms; (6)Dual Plane Organization, Permitting Concurrent Read while Program/Erase: Memory Plane A: Eight 4K Word, Two 16K Word and Six 32K Word Sectors, Memory Plane B: Twenty-four 32K Word Sectors; (7)Erase Suspend Capability: Supports Reading/Programming Data from Any Sector by Suspending Erase of Any Different Sector; (8)Low-power Operation: 25 mA Active, 10 μA Standby; (9)Data Polling, Toggle Bit, Ready/Busy for End of Program Detection; (10)Optional VPP Pin for Fast Programming; (11)RESET Input for Device Initialization; (12)Sector Program Unlock Command; (13)TSOP, CBGA, and μBGA Package Options; (14)Top or Bottom Boot Block Configuration Available.
