IT8718F-S

Low Pin Count Interface-based, highly integrated Super I/O, QFP, -0.5V to 5.5V, Floppy Disk Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: IT8718F-S

Brand:: ITE Tech. Inc. - ITE | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-10

From Other Seller

Part Number:IT8718F-S
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

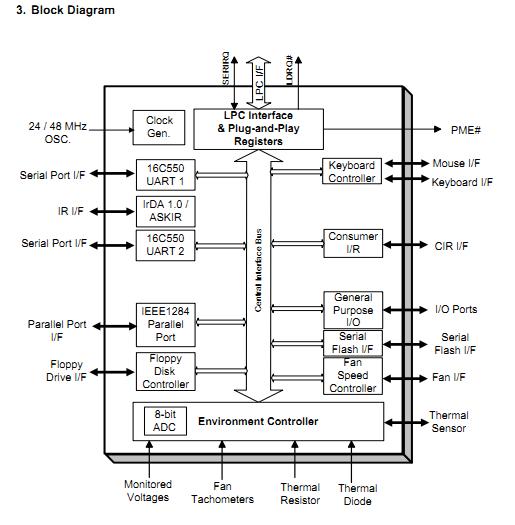

The IT8718F-S is a Low Pin Count Interface-based highly integrated Super I/O. The IT8718F-S provides the most commonly used legacy Super I/O functionality plus the latest Environment Control initiatives. The IT8718F-S LPC interface complies with Intel LPC Interface Specification Rev. 1.0. The IT8718F is ACPI & LANDesk compliant. The IT8718F-S features the enhanced hardware monitor providing 3 thermal inputs from remote thermal resistors, or thermal diode or diode-connected transistor (2N3904). The IT8718F-S also provides the ITE innovative intelligent automatic Fan ON/OFF & speed control functions (SmartGuardian) to protect the system, reducing the system noise and power consumption.

Parametrics

IT8718F-S absolute maximum ratings: (1)Applied Voltage: -0.5V to 5.5V; (2)Input Voltage (Vi): -0.5V to VCC+0.5V; (3)Output Voltage (Vo): -0.5V to VCC + 0.3V; (4)Operation Temperature (Topt): 0 to +70℃; (5)Storage Temperature: -55 to +125℃; (6)Power Dissipation: 300mW.

Features

IT8718F-S features: (1)Built-in 8-bit Analog to Digital Converter; (2)3 thermal inputs from remote thermal resistor or thermal diode or diode-connected transistor; (3)8 voltage monitor inputs (VBAT is measured internally.); (4)1 chassis open detection input with low power Flip-Flop backed by the battery; (5)Watch Dog comparison of all monitored values; (6)Provides VID0 – VID7 support for the CPU; (7)SST/PECI/AMDSI I/F support; (8)Provides programmable fan speed automatic control; (9)Supports mix-and-match for temperature inputs and fan speed control outputs; (10)Overrides fan speed controller during catastrophic situations; (11)Provides over temperature beep tone warning; (12)Input mode supports either switch de-bounce or programmable external IRQ input routing; (13)Output mode supports 2 sets of programmable LED blinking periods.
