Product Summary
The BLF177 is a N-channel enhancement mode vertical D-MOS transistor. The BLF177 is encapsulated in a 4-lead, SOT121B flanged package, with a ceramic cap. All leads are isolated from the flange. Amarking code, showing gate-source voltage (VGS) information is provided for matched pair applications. Refer to the handbook ‘General’ section for further information. The BLF177 is designed for industrial and military applications in the HF/VHF frequency range.
Parametrics
BLF177 absolute maximum ratings: (1)drain-source voltage:125 V; (2)gate-source voltage:±20 V; (3)drain current (DC):16 A; (4)total power dissipation:220 W; (5)storage temperature:-65℃ to +150℃; (6)junction temperature:200℃.
Features
BLF177 features: (1)High power gain; (2)Low intermodulation distortion; (3)Easy power control; (4)Good thermal stability; (5)Withstands full load mismatch.

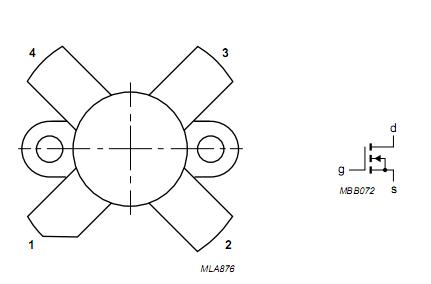

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BLF177 |
Advanced Semiconductor, Inc. |
Transistors RF MOSFET Power RF Transistor |
Data Sheet |
|
|
|||||||||||||
BLF177,112 |
NXP Semiconductors |
Transistors RF MOSFET Power RF DMOS 150W HF-VHF |
Data Sheet |
|
|
|||||||||||||
BLF177C |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177C,112 |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177CR |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177CR,112 |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
