Product Summary
The AT89C52-24pi is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash of the AT89C52-24pi allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer.
Parametrics
AT89C52-24pi absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.
Features
AT89C52-24pi features: (1)Compatible with MCS-51 Products; (2)8K Bytes of In-System Reprogrammable Flash Memory: Endurance: 1,000 Write/Erase Cycles; (3)Fully Static Operation: 0 Hz to 24 MHz; (4)Three-Level Program Memory Lock; (5)256 x 8-Bit Internal RAM; (6)32 Programmable I/O Lines; (7)Three 16-Bit Timer/Counters; (8)Eight Interrupt Sources; (9)Programmable Serial Channel; (10)Low Power Idle and Power Down Modes.

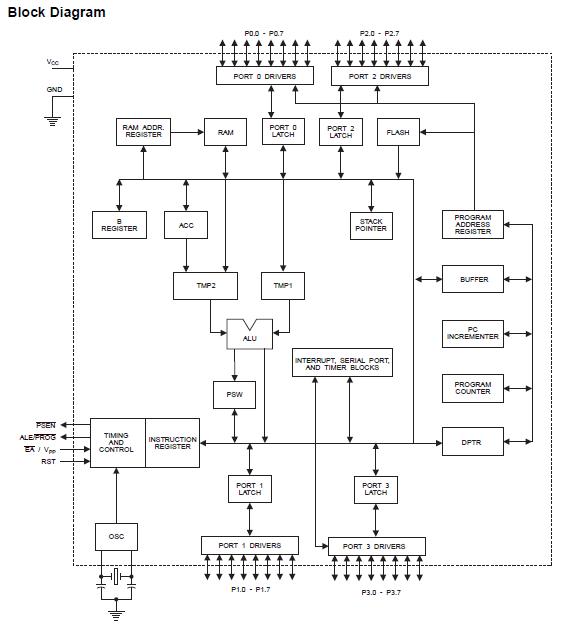

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT89C52-24PI |
Atmel |
8-bit Microcontrollers (MCU) 8K Flash 24M |
Data Sheet |
Negotiable |
|
||||||
