Product Summary

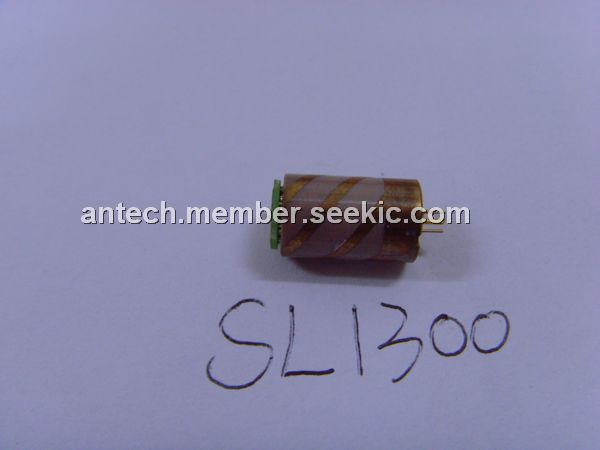

The SL1300 is a Passive GPS Antenna for Mobile Phones and Tightly integrated GPS Devices. The device is handheld, body-worn, or otherwise surrounded by high-dielectric materials that would de-tune conventional antennas. The SL1300 is tightly integrated with other antennas, e.g., Bluetooth/GPS receivers or GPS/GSM mobile phones. The GPS performance of the SL1300 antenna is significantly enhanced when integrated appropriately into the customer’s product. The antenna does not require a sleeve to de-tune it to GPS frequency.

Parametrics

SL1300 general specifications: (1)Embedded Frequency 1573.42MHz to 1577.42 MHz; (2)Polarization:Right-hand circular polarized; (3)Integrated Gain:-5.0dBic dBic @ zenith; (4)Beamwidth:>120 Degrees; (5)Bandwidth (3dB):15 MHz; (6)Axial Ratio:<1.5 @Zenith; (7)VSWR:<2.0:1, 2.3:1; (8)Impedance:50Ω; (9)Operating Temperature:-40℃ to +85℃; (10)Element Dimensions:7.5 (diameter) x 12 (length) mm; (11)Weight:3.0 grams.

Features

SL1300 features: (1)Integral balun; (2)Requires no ground plane; (3)High isolation from platform rejects common-mode noise; (4)Negligible proximity de-tuning ; (5)No embedding sleeve required; (6)Constrained near-field does not interact with nearby components or the user; (7)Strong circular polarization; (8)Stable impedance; (9)Broad beamwidth; (10)Easy to embed - predictable performance; (11)RoHS compliant.

Diagrams

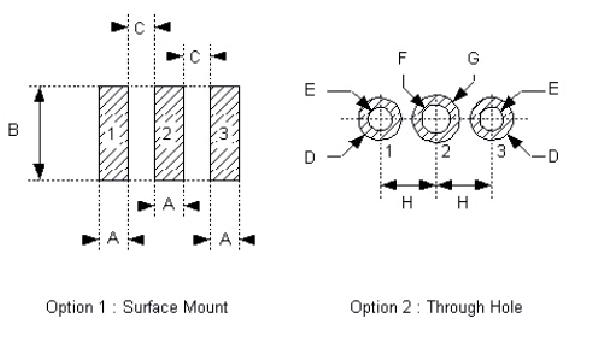

SL1300 pin configuration
