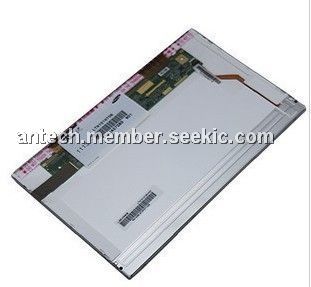

Product Summary

The B101AW06 V1 is a Color Active Matrix Liquid Crystal Display, which is composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format of the B101AW06 V1 is intended to support the 16:9 SD, 1024(H) x600(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B101AW06 V1 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B101AW06 V1 absolute maximum ratings: (1)Logic/LCD Drive: -0.3 to +4.0 Volt; (2)Operating Temperature: 0 to +50 ℃; (3)Operation Humidity: 5 to 95 %RH; (4)Storage Temperature: -20 to +60 ℃; (5)Storage Humidity: 5 to 95 %RH.

Features

B101AW06 V1 electrical characteristics: (1)Differential Input High Threshold (Vcm=+1.2V): 100 mV; (2)Differential Input Low Threshold (Vcm=+1.2V): -100 mV; (3)|VID| Differential Input Voltage: 100 to 600 mV; (4)Differential Input Common Mode Voltage: 1.125 to 1.375 V.

Diagrams

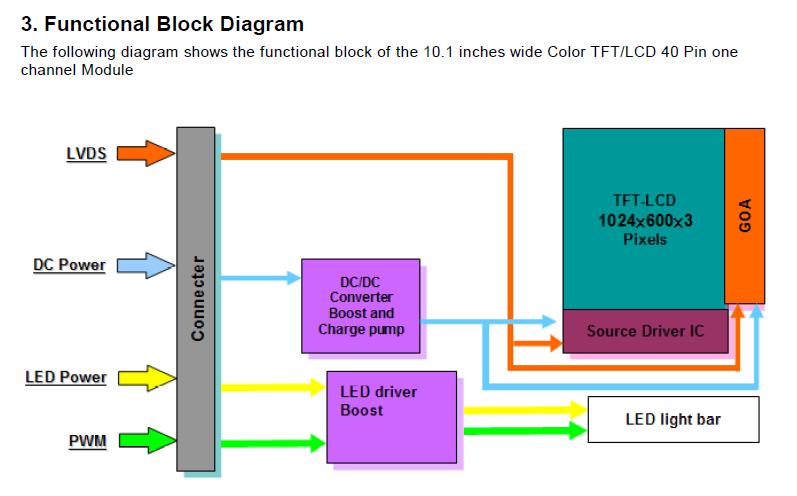

B101AW06 V1 block diagram
