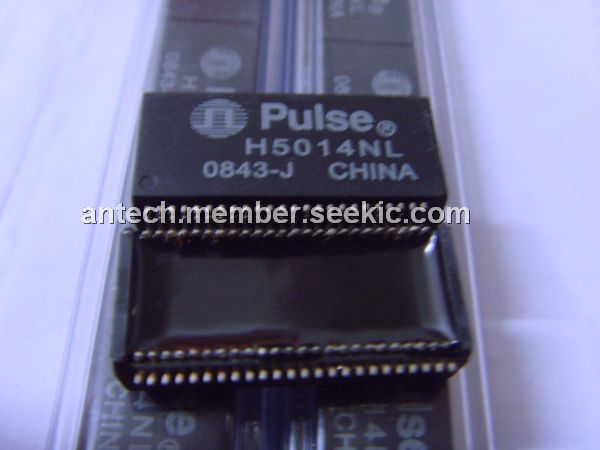

Product Summary

The H5014NL is a 1000 base-t magnetics module designed to support 1:1 turns ratio transceivers.

Parametrics

H5014NL absolute maximum ratings: (1)number of ports: 2; (2)insetion loss: 1.4dB max at 1-100MHz; (3)return loss: -14.4dB min at 1-30MHz; -13.1dB min at 50MHz; -12dB min at 60-80MHz; -10dB min at 100MHz; (4)differential to common mode rejection: -45dB min at 30MHz; -40dB min at 60MHz; -35dB min at 100MHz; (5)crosstalk: -43.5dB min at 30MHz; -37.5dB min at 60MHz; -33dB min at 100MHz; (6)hipot: 1500Vrms.

Features

H5014NL features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification.

Diagrams

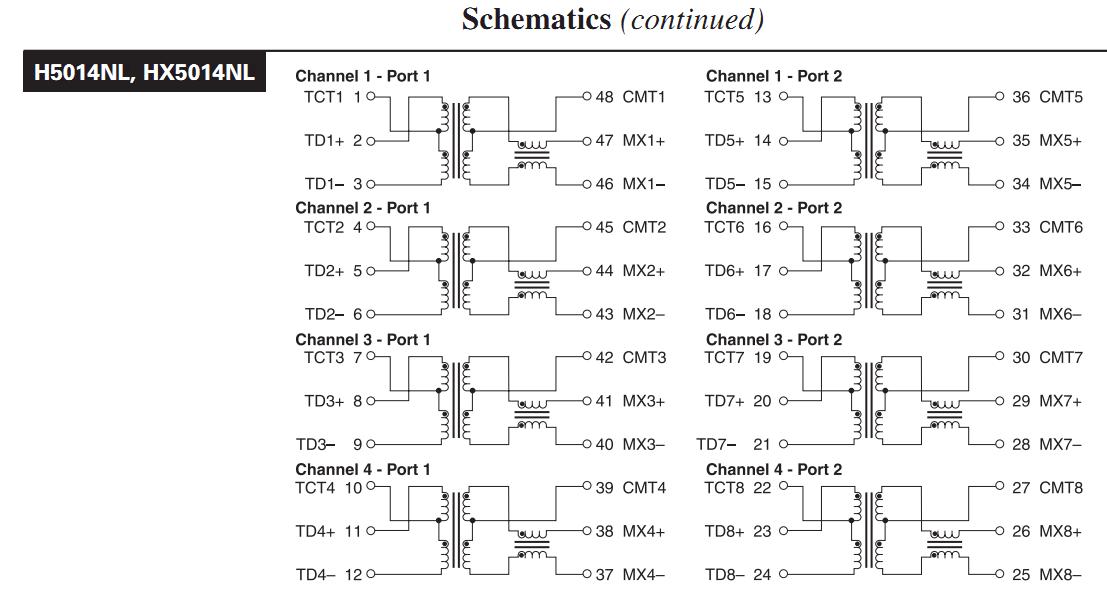

H5014NL schematic
