Product Summary

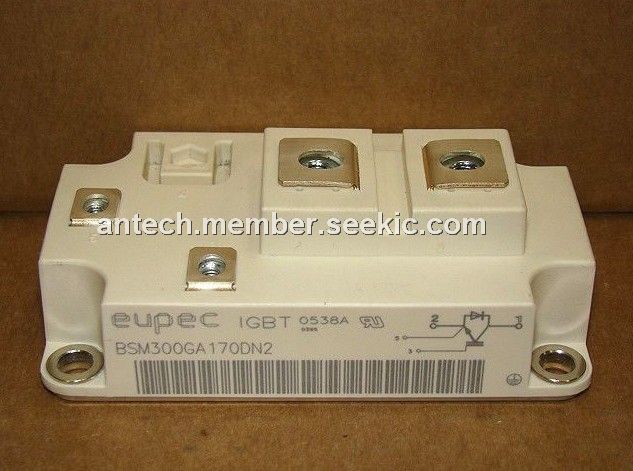

The BSM300GA170DN2 is an IGBT power module.

Parametrics

BSM300GA170DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1700V; (2)Collector-gate voltage RGE = 20 kW, VCGR: 1700V; (3)Gate-emitter voltage VGE: ± 20V; (4)DC collector current, IC, TC = 25 ℃: 440A, TC = 80 ℃: 300A; (5)Power dissipation per IGBT, Ptot, TC = 25 ℃: 2500W; (6)Chip temperature Tj: + 150 ℃; (7)Storage temperature Tstg: -55 to +150; (8)Thermal resistance, chip case RthJC ≤ 0.05 K/W; (9)Diode thermal resistance, chip case RthJCD ≤ 0.1; (10)Insulation test voltage, t = 1min. Vis: 4000 Vac.

Features

BSM300GA170DN2 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Enlarged diode area; (4)Package with insulated metal base plate; (5)RG on,min = 5.6 Ohm.

Diagrams

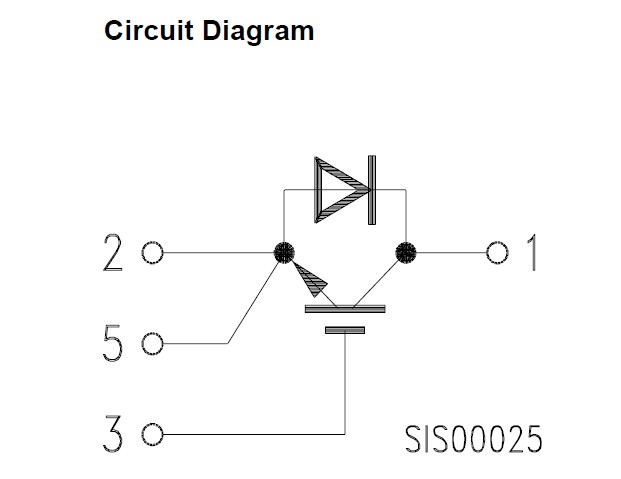

BSM300GA170DN2 Circuit Diagram
