Product Summary

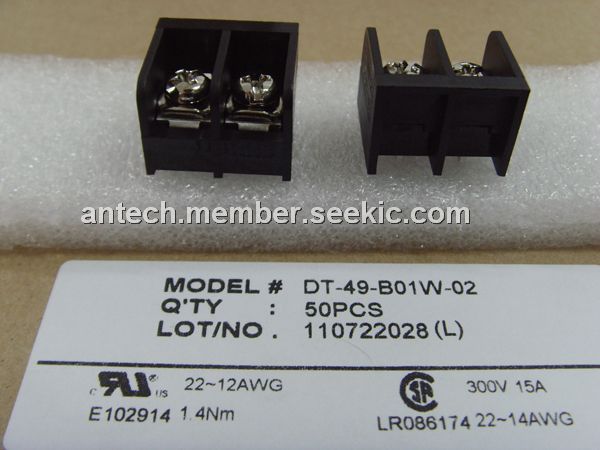

The DT-49-B01W-02 is a Barrier Style Terminal Block.
Parametrics
DT-49-B01W-02 general specifications: (1)Working Temperature:-40℃ to +105℃; (2)Insulation withstand Voltage:AC2000V at 1 minute; (3)Insulation Resistance:500MΩ or more at DC500V; (4)Wire range:22 to 12 AWG; (5)Rated Torque Value:10Kg-cm.
Features
DT-49-B01W-02 features: (1)Rated voltage:300V ; (2)Rated current:25A ; (3)Plastic Housing:PA6.6, UL94V-0, Black ; (4)Terminal:Brass, 0.8t, Tin plated ; (5)Screw:Steel, # 6-32, Nickel plated.

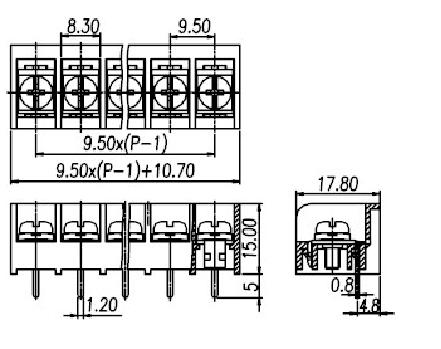

Diagrams
