Product Summary

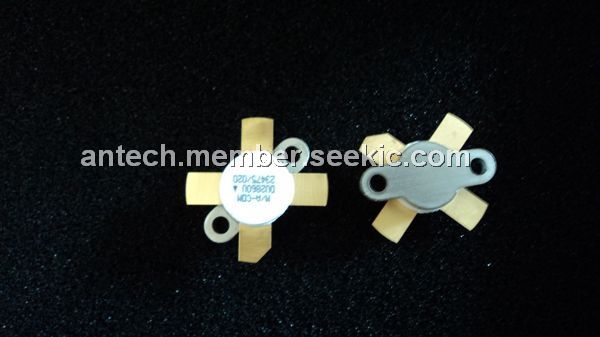

The DU2860U is a RF Power MOSFET Transistor.

Parametrics

DU2860U asbolute maximum ratings: (1)Drain-Source Voltage:65V; (2)Gate-Source Voltage:20V; (3)Drain-Source Current:12A ; (4)Power Dissipation:159W; (5)Junction Temperature:200℃ ; (6)Storage Temperature:-55℃ to +150℃; (7)Thermal Resistance:1.1℃/W.

Features

DU2860U features: (1)N-Channel enhancement mode device ; (2)DMOS structure ; (3)Lower capacitances for broadband operation ; (4)High saturated output power ; (5)Lower noise figure than bipolar devices.

Diagrams

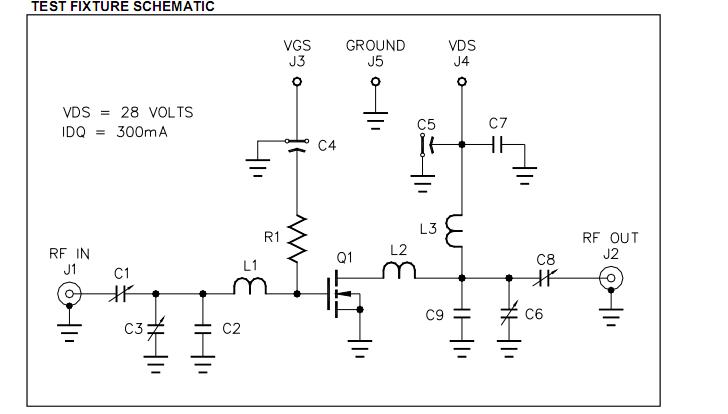

DU2860U circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DU2860U
DU2860U

Other


Data Sheet

Negotiable
