Product Summary

The FGA25N120ANTD is a 1200V NPT trench IGBT. Using Fairchilds proprietary trench design and advanced NPT technology, the 1200V NPT IGBT FGA25N120ANTD offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. The FGA25N120ANTD is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.

Parametrics

FGA25N120ANTD absolute maximum ratings: (1)ICM Pulsed Collector Current: 90 A; (2)IF Diode Continuous Forward Current @ TC = 100℃: 25 A; (3)IFM Diode Maximum Forward Current: 150 A; (4)PD Maximum Power Dissipation @ TC = 25℃: 312 W; (5)Maximum Power Dissipation @ TC = 100℃: 125 W; (6)TJ Operating Junction Temperature: -55 to +150 ℃; (7)Tstg Storage Temperature Range: -55 to +150 ℃.

Features

FGA25N120ANTD features: (1)NPT Trench Technology, Positive temperature coefficient; (2)Low saturation voltage: VCE(sat), typ = 2.0V @ IC = 25A and TC = 25℃; (3)Low switching loss: Eoff, typ = 0.96mJ @ IC = 25A and TC = 25℃; (4)Extremely enhanced avalanche capability.

Diagrams

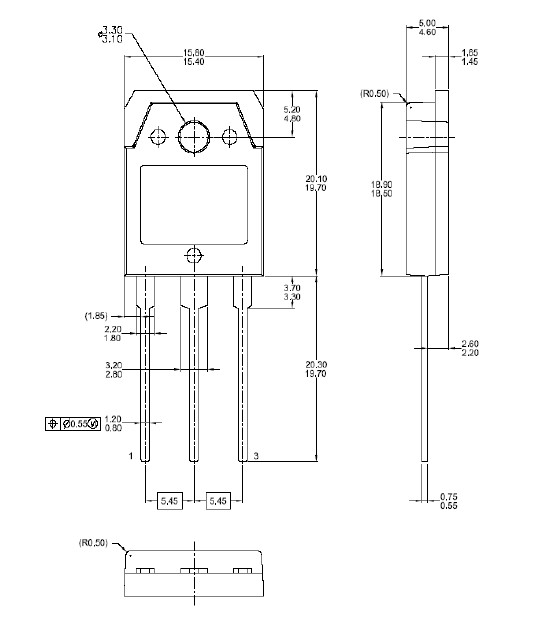

FGA25N120ANTD Mechanical Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FGA25N120ANTD
FGA25N120ANTD
Other

Data Sheet
Negotiable
FGA25N120ANTDTU
FGA25N120ANTDTU
Fairchild Semiconductor
IGBT Transistors Copak Discrete
Data Sheet
0-1: $2.68
1-25: $2.42
25-100: $2.20
100-250: $1.99
FGA25N120ANTDTU_F109
FGA25N120ANTDTU_F109
Fairchild Semiconductor
IGBT Transistors Copak Discrete
Data Sheet
0-220: $2.11
220-250: $1.91
250-500: $1.72
500-1000: $1.45
