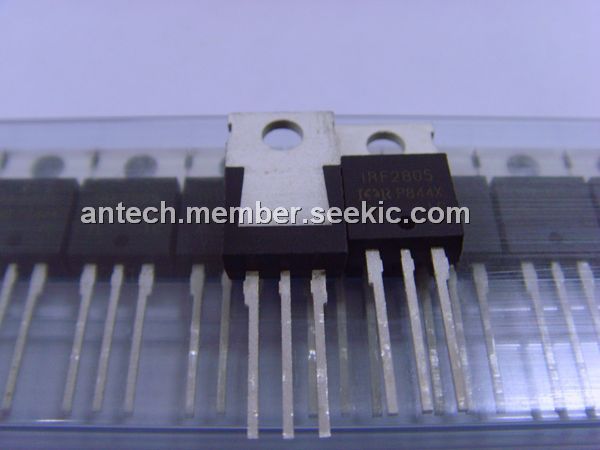

IRF2805

automotive MOSFET, TO220, Advanced Process Technology, Ultra Low On-Resistance, 55V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: IRF2805

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:IRF2805
US $1.00 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF2805 is a automotive MOSFET. The IRF2805 utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175℃ junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications. The applications of the IRF2805 are Climate Control, ABS, Electronic Braking, Windshield Wipers.

Parametrics

IRF2805 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V (Silicon limited):175A; (2)Continuous Drain Current, VGS @ 10V:120A; (3)Continuous Drain Current, VGS @ 10V (Package limited):75A; (4)Pulsed Drain Current:700A; (5)Power Dissipation:330W; (6)Linear Derating Factor:2.2W/℃ ; (7)Gate-to-Source Voltage:±20V; (8)Single Pulse Avalanche Energy:450mJ ; (9)Single Pulse Avalanche Energy Tested Value:1220mJ; (10)Operating Junction and Storage Temperature Range:-55℃ to +175℃; (11)Soldering Temperature, for 10 seconds:300℃ (1.6mm from case ).

Features

IRF2805 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Repetitive Avalanche Allowed up to Tjmax.
