Product Summary

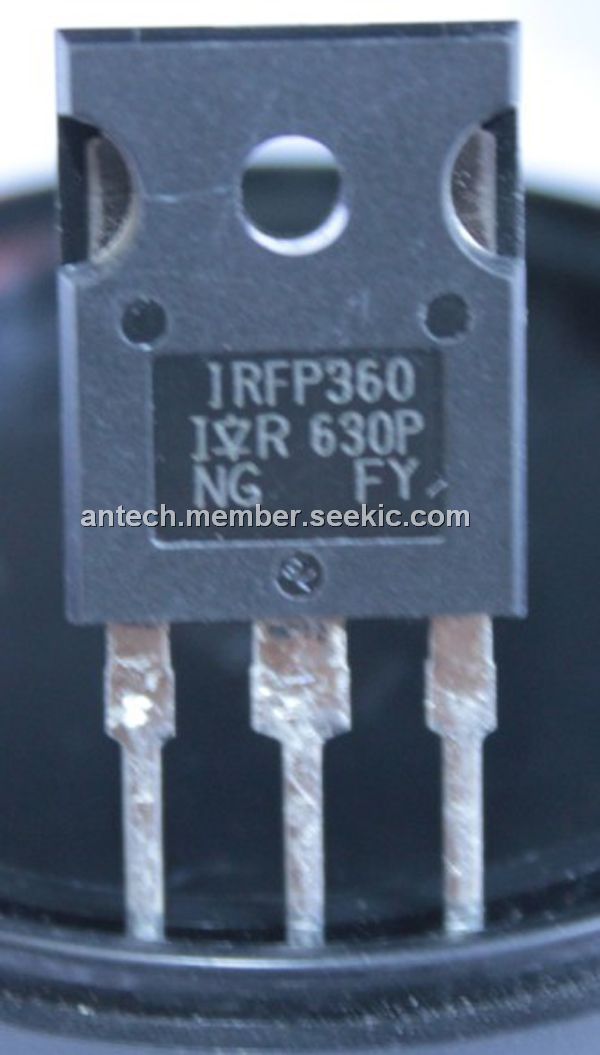

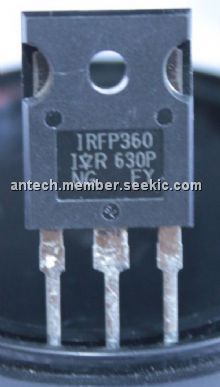

The IRFP360 is a Power MOSFET. The IRFP360 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. The IRFP360 also provides greater creepage distance between pins to meet the requirements of most safety specifications.

Parametrics

IRFP360 absolute maximum ratings: (1)Drain-Source Voltage:400V ; (2)Gate-Source Voltage:±20V; (3)Pulsed Drain Current:92A; (4)Linear Derating Factor:2.2 W/℃ ; (5)Single Pulse Avalanche Energy:1200 mJ ; (6)Repetitive Avalanche Current:23 A ; (7)Repetitive Avalanche Energy:28 mJ ; (8)Maximum Power Dissipation:280 W ; (9)Peak Diode Recovery dV/dt:4.0 V/ns ; (10)Operating Junction and Storage Temperature Range:-55℃ to +150℃; (11)Soldering Recommendations (Peak Temperature) for 10 s:300℃.

Features

IRFP360 features: (1)Dynamic dV/dt Rated; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead (Pb)-free Available.

Diagrams

IRFP360 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP360
IRFP360
Vishay/Siliconix
MOSFET N-Chan 400V 23 Amp
Data Sheet
0-331: $5.24
331-500: $4.81
500-1000: $4.61
IRFP360, SiHFP360
IRFP360, SiHFP360
Other

Data Sheet
Negotiable
IRFP360PBF
IRFP360PBF
Vishay/Siliconix
MOSFET N-Chan 400V 23 Amp
Data Sheet
0-1: $2.27
1-10: $1.82
10-100: $1.66
100-250: $1.50
IRFP360LCPBF
IRFP360LCPBF
Vishay/Siliconix
MOSFET N-Chan 400V 23 Amp
Data Sheet
0-1: $2.27
1-10: $2.10
10-100: $1.93
100-250: $1.74
IRFP360LC
IRFP360LC
Vishay/Siliconix
MOSFET N-Chan 400V 23 Amp
Data Sheet
0-331: $10.60
331-500: $9.71
IRFP360LC, SiHFP360LC
IRFP360LC, SiHFP360LC
Other

Data Sheet
Negotiable
