Product Summary
The IXP450 218S4PASA13G is aproduct line of network processor. The IXP450 218S4PASA13G Product Line of Network Processor is compliant with the Intel StrongARM Version 5TE instruction-set architecture (ISA). The IXP450 218S4PASA13G network processor is designed with Intel 0.18-micron semiconductor process technology. This process technology along with the compactness.
Parametrics
IXP450 218S4PASA13G absolute maximum ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial): 0℃ to 70℃; (3)Supply Voltage: -0.3 V to 2.1 V; (4)Supply Voltage I/O: -0.3 V to 3.6 V; (5)Supply Voltage DDR: -0.3V to 2.75V; (6)Supply Voltage Oscillator: -0.3 V to 2.1 V; (7)Supply Voltage PLL: -0.3 V to 2.1 V; (8)Voltage On Any I/O Ball: -0.3 V to 3.6V; (9)Storage Temperature: -55℃ to 125℃.
Features
IXP450 218S4PASA13G features: (1)PCI v. 2.2 33/66 MHz (Host/Option); (2)USB 1.1 Device Controller; (3)USB 2.0 Host Controller; (4)DDRI SDRAM Interface; (5)Master/Target Capable Expansion bus; (6)Two UARTs; (7)Internal Bus Performance MonitoringUnit; (8)16 GPIO; (9)Four Internal Timers; (10)Synchronous Serial Protocol (SSP) Port; (11)I2C Interface.

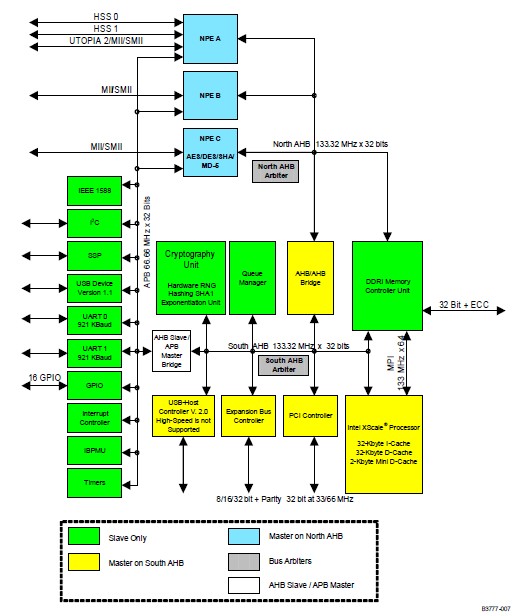

Diagrams
