Product Summary

The MSP430F2471TPM is an ultra-low power microcontroller. The device consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The MSP430F2471TPM features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 μs. Typical applications of the MSP430F2471TPM include sensor systems, industrial control applications, hand-held meters, etc.

Parametrics

MSP430F2471TPM absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: -55 to 150℃.

Features

MSP430F2471TPM features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultra-Low Power Consumption: Active Mode: 270 μA at 1 MHz, 2.2 V; Standby Mode (VLO): 0.3 μA; Off Mode (RAM Retention): 0.1 μA; (3)Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs; (4)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (5)On-Chip Comparator; (6)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (7)Brownout Detector; (8)Bootstrap Loader; (9)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse.

Diagrams

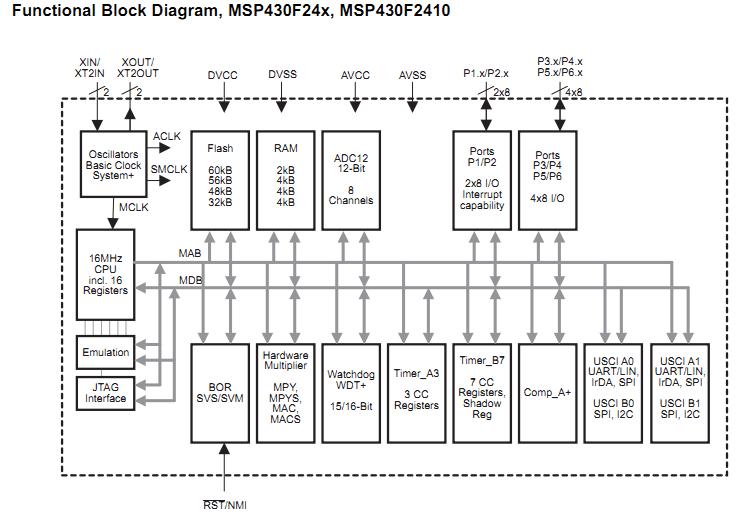

MSP430F2471TPM functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSP430F2471TPM
MSP430F2471TPM

Texas Instruments

16-bit Microcontrollers (MCU) 16B Ultra-Lo-Pwr MCU

Data Sheet

0-1: $4.25
1-10: $3.82
10-25: $3.40
25-50: $3.20
MSP430F2471TPMR
MSP430F2471TPMR

Texas Instruments

16-bit Microcontrollers (MCU) 16B Ultra-Lo-Pwr MCU

Data Sheet

0-790: $2.17
790-1000: $2.12
