Product Summary

The PE-53911 is a SMT common mode inductor.

Parametrics

PE-53911 absolute maximum ratings: (1)inductance: 0.9mH min; (2)irated: 1.5A; (3)DCR: 60mΩ max; (4)typical SRF: 2MHz; (5)impedance curve: 2; (6)size code: LCCI-37; (7)weight: 2.5Grams; (8)quantity in tube: 30.

Features

PE-53911 features: (1)Pick and place compatible; (2)Rated voltage 250VAC; (3)Low RFI toroid; (4)Tape & Reel packaging available.

Diagrams

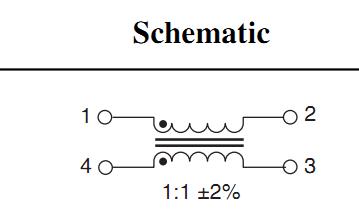

PE-53911 schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PE-53911
PE-53911

Pulse

Common Mode Inductors (Chokes) SMT COMMON MODE IND

Data Sheet

0-1: $3.28
1-10: $2.73
10-100: $1.88
100-500: $1.73
PE-53911NL
PE-53911NL

Pulse

Common Mode Inductors (Chokes) SMT COMMON MODE IND

Data Sheet

0-1: $1.35
1-10: $1.12
10-100: $0.78
100-500: $0.72
PE-53911NLT
PE-53911NLT

Pulse

Common Mode Inductors (Chokes) SMT COMMON MODE INDUCTOR

Data Sheet

0-1: $1.67
1-10: $1.01
10-100: $0.68
100-200: $0.68
