Product Summary

The LM79L05ACMX is a 3-terminal negative voltage regulator. It features fixed output voltages of -5V, -12V, and -15V with output current capabilities in excess of 100mA. The LM79L05ACMX was designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79L05ACMX is available in the 3-lead TO-92 package, 8-lead SOIC package, and the 6-Bump micro SMD package.

Parametrics

LM79L05ACMX absolute maximum ratings: (1)Input Voltage:-35V; (2)Internal Power Dissipation:Internally Limited; (3)Operating Temperature Range:0℃ to +70℃; (4)Maximum Junction Temperature:+125℃; (5)Storage Temperature Range:-55℃ to +150℃; (6)Lead Temperature(Soldering, 10 sec.):260℃.

Features

LM79L05ACMX features: (1)Preset output voltage error is less than ±5% overload, line and temperature; (2)Specified at an output current of 100mA; (3)Easily compensated with a small 0.1μF output capacitor; (4)Internal short-circuit, thermal and safe operating area protection; (5)Easily adjustable to higher output voltages; (6)Maximum line regulation less than 0.07% VOUT/V; (7)Maximum load regulation less than 0.01% VOUT/mA; (8)See AN-1112 for micro SMD considerations.

Diagrams

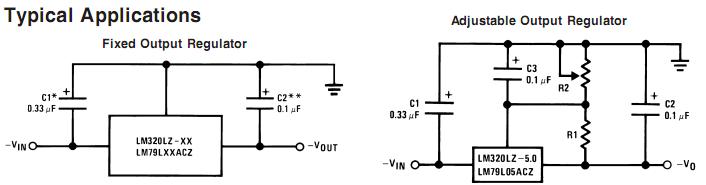

LM79L05ACMX circuit diagram
