LP121WX3-TLA2

Product Summary

The LP121WX3-TLA2 is a Color Active Matrix Liquid Crystal Display with an integral White LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LP121WX3-TLA2 is a transmissive type display operating in the normally white mode. This TFT-LCD has 12.1 inches diagonally measured active display area with WXGA resolution(800 vertical by 1280 horizontal pixel array). Each pixel of the LP121WX3-TLA2 is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP121WX3-TLA2 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP121WX3-TLA2 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the verticalarrangement of the sub-pixels, the LP121WX3-TLA2 characteristics provide an excellent flat display for office automation products such as Notebook PC.

Parametrics

LP121WX3-TLA2 absolute maximum ratings: (1)Power Input Voltage, VCC: -0.3 to 4.0Vdcat 25 ± 5℃; (2)Operating Temperature, TOP: 0 to 50 ℃; (3)Storage Temperature, HST: -20 to 60 ℃ ; (4)Operating Ambient Humidity, HOP: 10 to 90 %RH; (5)Storage Humidity, HST: 10 to 90 %RH.

Features

LP121WX3-TLA2 features: (1)Active Screen Size: 12.1 inches diagonal; (2)Outline Dimension: 275.8 (H) × 178.1 (V) × 5.5(D, max) mm; (3)Pixel Pitch: 0.204 mm × 0.204 mm; (4)Pixel Format: 1280 horiz. By 800 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Surface Treatment: Glare treatment of the front polarizer; (7)Luminance, White: 220 cd/m2(Typ.5 point); (8)Power Consumption: Total 4.0 Watt(Typ.) @ LCM circuit 0.8Watt(Typ.), B/L input 3.2Watt(Typ.); (9)Weight: 270g(Max.); (10)Display Operating Mode:Transmissive mode, normally white; (11)RoHS Comply: Yes.

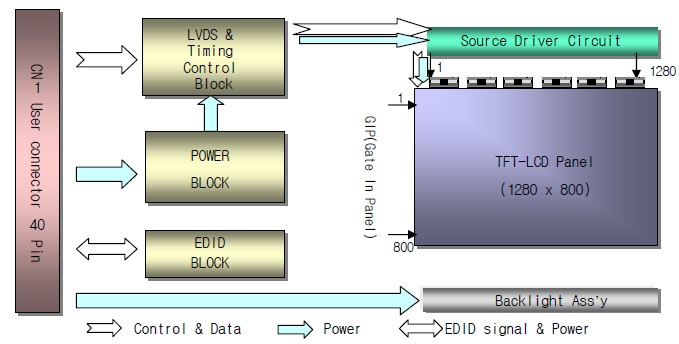

Diagrams
