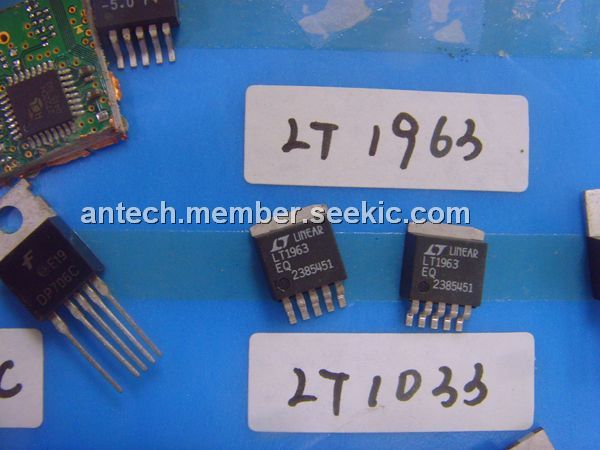

Product Summary

The LT1963 is a low dropout regulator. It is optimized for fast transient response. The device is capable of supplying 1.5A of output current with a dropout voltage of 340mV. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963 regulators have very low output noise which makes them ideal for sensitive RF supply applications. The applications of the LT1963 are 3.3V to 2.5V Logic Power Supplies, Post Regulator for Switching Supplies.

Parametrics

LT1963 absolute maximum ratings: (1)IN Pin Voltage:±20V; (2)OUT Pin Voltage:±20V; (3)Input to Output Differential Voltage:±20V; (4)SENSE Pin Voltage:±20V; (5)ADJ Pin Voltage:±7V; (6)SHDN Pin Voltage:±20V; (7)Output Short-Circuit Duration: Indefinite; (8)Operating Junction Temperature Range:–45℃ to 125℃; (9)Storage Temperature Range:–65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec):300℃.

Features

LT1963 features: (1)Optimized for Fast Transient Response; (2)Output Current: 1.5A; (3)Dropout Voltage: 340mV; (4)Low Noise: 40μVRMS (10Hz to 100kHz); (5)1mA Quiescent Current; (6)No Protection Diodes Needed; (7)Controlled Quiescent Current in Dropout; (8)Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V; (9)Adjustable Output from 1.21V to 20V; (10)<1μA Quiescent Current in Shutdown; (11)Stable with 10μF Output Capacitor; (12)Reverse Battery Protection; (13)No Reverse Current; (14)Thermal Limiting.

Diagrams

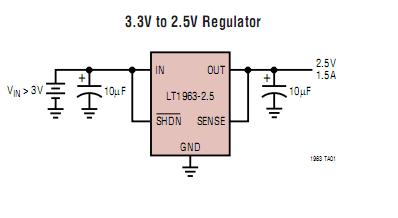

LT1963 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1963
LT1963

Other


Data Sheet

Negotiable
LT1963 series
LT1963 series

Other


Data Sheet

Negotiable
LT1963AEFE#PBF
LT1963AEFE#PBF


IC REG LDO ADJ 1.5A 16TSSOP

Data Sheet

0-1: $3.17
1-25: $2.14
25-100: $1.76
LT1963AEFE#TRPBF
LT1963AEFE#TRPBF


IC REG LDO ADJ 1.5A 16TSSOP

Data Sheet

0-2500: $1.79
LT1963AEFE-1.5#PBF
LT1963AEFE-1.5#PBF


IC REG LDO 1.5V 1.5A 16TSSOP

Data Sheet

0-285: $1.76
LT1963A
LT1963A

Other


Data Sheet

Negotiable
LT1963AEFE-1.5#TRPBF
LT1963AEFE-1.5#TRPBF


IC REG LDO 1.5V 1.5A 16TSSOP

Data Sheet

0-2500: $1.79
LT1963AEQ
LT1963AEQ


IC REG LDO ADJ 1.5A 5-DD

Data Sheet

0-2300: $1.76
