Product Summary

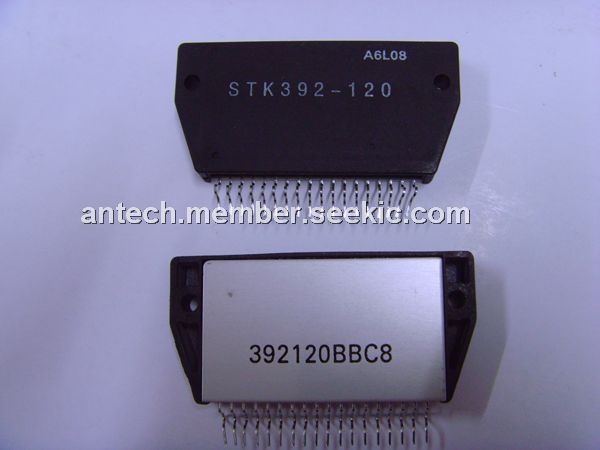

The STK392-120 is a convergence correction amplifier for video projector. The device has three output amplifiers in the hybrid IC. The application of the STK392-120 is video projector(general projection TV).
Parametrics
STK392-120 absolute maximum ratings: (1)supply voltage:±44V; (2)maximum collector current:±4.0A; (3)thermal resistance:2.7℃/W; (4)junction temperature:150℃; (5)operating case temperature:125℃; (6)storage temperature:-30℃ to +125℃.
Features
STK392-120 features: (1)3 channel/1 package(18 pins); (2)higher maximum supply voltage(VCC max=±44V); (3)lower thermal resistance(θJ-C=2.7℃/W); (4)excellent thermal stability(Tc max=125℃); (5)power supplies of pre driver and output driver amplifier block are independent; (6)capable of designing of high efficiency by substituting power supply of output brock; (7)lower rush current at power switch ON; (8)B class amplifier using pure complimentary circuit.

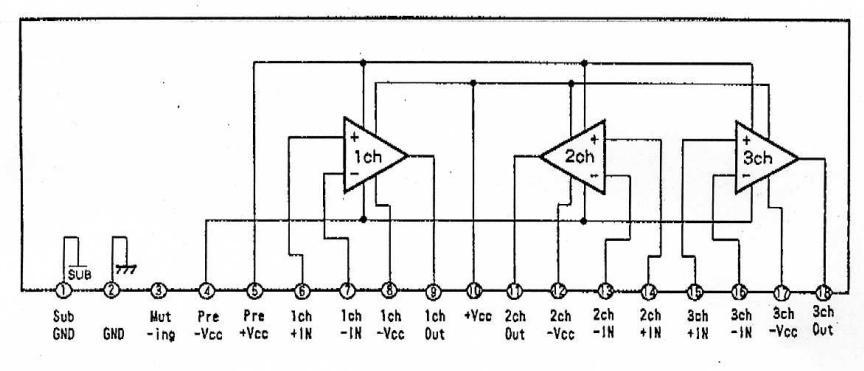

Diagrams
 |
