Product Summary

The TOSHIBA mini flat coupler TLP180 is a small outline coupler, suitable for surface mount assembly. TLP180 consist of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.


Parametrics

TLP180 absolute maximum ratings: (1)Forward current: ±50 mA; (2)Forward current derating (Ta ≥ 53℃): -0.7 mA/℃; (3)Pulse forward current: ±1 A; (4)Junction temperature: 125 ℃; (5)Detector Collector-emitter voltage: 80 V; (6)Emitter-collector voltage: 7 V; (7)Collector current: 50 mA; (8)Power dissipation: 150 mW; (9)Power dissipation derating (Ta ≥ 25℃): -1.5 mW/℃; (10)Junction temperature: 125 ℃; (11)Storage temperature range: -55~125 ℃; (12)Operating temperature range: -55~100 ℃; (13)Lead soldering temperature (10 s): 260 ℃; (14)Total package power dissipation: 200 mW.

Features

TLP180 features: (1)Collector?emitter voltage: 80 V (min.); (2)Current transfer ratio: 50% (min.) Rank GB: 100% (min.); (3)Isolation voltage: 3750Vrms (min.); (4)UL recognized: UL1577, file No. E67349.

Diagrams

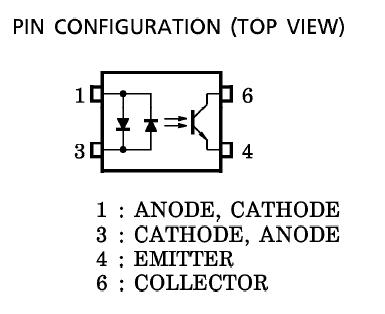

TLP180 pin configuration diagram
