Product Summary

The TOSHIBA TLP350 is a photocoupler. It consists of a GaAlAs light-emitting diode and an integrated photodetector. This unit is an 8-lead DIP package. The TLP350 is suitable for gate driving IGBTs or power MOSFETs.

Parametrics

TLP350 absolute maximum ratings: (1)Forward Current: 20 mA; (2)Forward Current Derating: -0.54 (Ta≥53℃) mA/℃; (3)Pulse Forward Current: 1 A; (4)Reverse Voltage: 5 V; (5)Junction Temperature: 125 ℃; (6)Supply voltage: 35 V; (7)Supply voltage Derating: -1.0 V/℃; (8)Junction temperature: 125 ℃; (9)Storage temperature range: -55 to 125 ℃.

Features

TLP350 features: (1)Peak output current : IO = ±2.5A (max); (2)Guaranteed performance over temperature : -40 to 100℃; (3)Supply current : ICC = 2 mA (max); (4)Power supply voltage: VCC = 15 to 30 V; (5)Threshold input current : IFLH = 5 mA (max); (6)Switching time (tpLH/tpHL) : 500 ns (max); (7)Common mode transient immunity : 15 kV/μs; (8)Isolation voltage : 3750 Vrms; (9)UL Recognized : UL1577,File No.E67349.

Diagrams

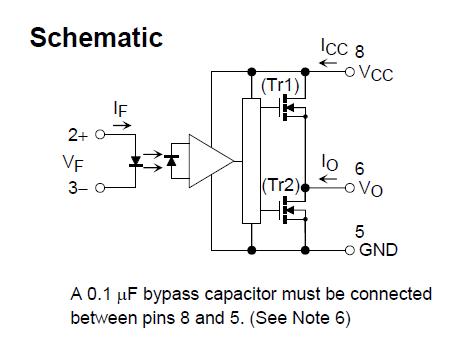

TLP350 schematic diagram
