The TLP521-1 is a Photocoupler. It consists of a photo-transistor optically coupled to a gallium arsenide infrared emitting diode. The applications of the TLP521-1 are Programmable Controllers, AC/DC-Input Module, Solid State Relay.
Parametrics
TLP521-1 absolute maximum ratings: (1)Forward current:70mA; (2)Forward current derating:-0.93mA/℃; (3)Pulse forward current:1A; (4)Reverse voltage:5V; (5)Junction temperature:125℃; (6)Collector-emitter voltage:55V; (7)Emitter-collector voltage:7V; (8)Collector current:50mA; (9)Collector power dissipation (1 circuit):150W; (10)Collector power dissipation derating (1 circuit Ta ≥ 25℃):-1.5mW/℃; (11)Junction temperature:125℃; (12)Storage temperature range:-55℃ to 125℃; (13)Operating temperature range:-55℃ to 100℃; (14)Lead soldering temperature:260℃(10s); (15)Total package power dissipation:250mW; (16)Total package power dissipation derating (Ta ≥ 25℃):-2.5mW/℃.
Features
TLP521-1 features: (1)Collector-emitter voltage: 55 V (min) ; (2)Current transfer ratio: 50% (min), Rank GB: 100% (min) ; (3)Isolation voltage: 2500 Vrms (min) ; (4)UL recognized made in Japan: UL1577, file No. E67349, made in Thailand: UL1577, file No. E152349 .

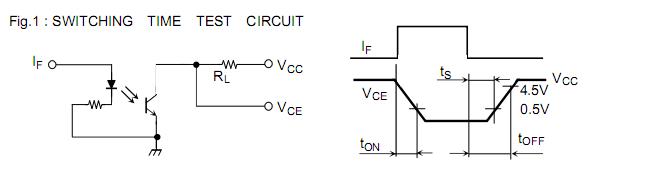

Diagrams
