Product Summary

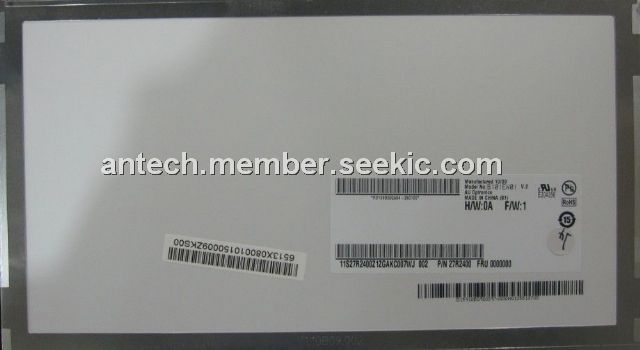

The B101EW01 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support 1280(H) x 720(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B101EW01 is designed for a display unit of notebook style personal computer and industrial machine.
Parametrics
B101EW01 absolute maximum ratings: (1)Operating Temperature:0℃ to +50℃; (2)Operation Humidity:5%RH to 95%RH; (3)Storage Temperature:-20℃ to +60℃; (4)Storage Humidity:5%RH to 95%RH.
Features
B101EW01 features: (1)Type: TFT-LCD; (2)Resolution: 1280x720; (3)Size: 10.1” ; (4)Backlight: LED; (5)Connectivity: LVDS; (6)Bit Rate: 6-Bit; (7)Nits (cd/m2): 180-Nit; (8)Operating Range: 0℃ to 50℃; (9)Pin: 40-Pin; (10)Surface Treatment: Matte; (11)Input Voltage: 3.3V; (12)Format: HD-720; (13)Vertical(s): Industrial, Notebook PC.
