Product Summary

The MA1-8015 is an emergency stop device.

Parametrics

MA1-8015 general specifications: (1)Rated insulation volage:300 V; (2)Rated thermal current:5 A; (3)Ambient temperature during operation:-25℃ to +70℃; (4)Storage temperature:-40℃ to +85℃; (5)Pushbuttons, selector switches:500 000 operations; (6)Emergency stop pushbutton:50 000 operations.

Features

MA1-8015 features: (1)Widest range of integrated LED:s on the market; (2)Parts of Range IP 67, 69K. All range IP 66 & UL Type 1, 3R, 4, 4X, 12, 13.; (3)Snap-on feature reduces installation time; (4)Quick release contact holder; (5)Several bezel colors; (6)Unique low energy solutions, including wiping action.

Diagrams

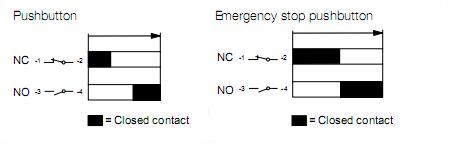

MA1-8015 circuit diagram
