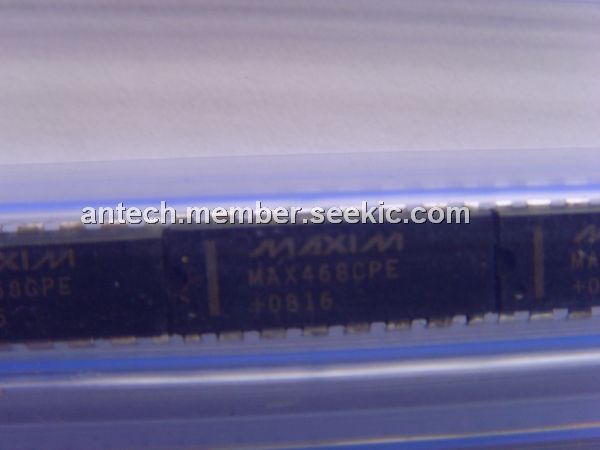

MAX4680PE

1.25Ω, Dual SPST, CMOS Analog Switche, DIP, Rail-to-Rail Signal Handling

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MAX4680PE

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elaine Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:MAX4680PE
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX4680PE is a dual analog switch. It features low on-resistance of 1.25Ω max. On-resistance is matched between switches to 0.3Ω max and is flat (0.3Ω max) over the specified signal range. The MAX4680PE can handle Rail-to-Rail analog signals. It is ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. The applications of the MAX4680PE are Reed Relay Replacement, Data Acquisition Systems, Test Equipment, Sample-and-Hold Circuits, Communication Systems, PBX, PABX Systems.

Parametrics

MAX4680PE absolute maximum ratings: (1)V+ to GND:-0.3V to +44V; (2)V- to GND:+0.3V to -44V; (3)V+ to V-:-0.3V to +44V; (4)VL to GND:-0.3V to (V+ + 0.3V); (5)All Other Pins to GND:(V- - 0.3V) to (V+ + 0.3V); (6)Continuous Current (COM_, NO_, NC_):±200mA; (7)Peak Current (COM_, NO_, NC_):±300mA; (8)Continuous Power Dissipation:842mW; (9)Operating Temperature Ranges:-40℃ to +85℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX4680PE features: (1)Low On-Resistance (1.25Ω max); (2)Guaranteed RON Match Between Channels (0.3Ω max); (3)Guaranteed RON Flatness Over Specified Signal Range (0.3Ω max); (4)Rail-to-Rail Signal Handling; (5)+4.5V to +36V Single-Supply Operation ; (6)±4.5V to ±20V Dual-Supply Operation; (7)TTL/CMOS-Compatible Control Inputs; (8)＞2kV ESD Protection per Method 3015.7.
