Product Summary
The PM100CVA120-2 is a flat-base type with insulated package.
Parametrics
PM100CVA120-2 absolute maximum ratings: (1)VCES, Collector-Emitter Voltage, when VD = 15V, VCIN = 15V: 1200V; (2)±IC, Collector Current, when TC = 25℃: 100A; (3)±ICP, Collector Current (Peak), when TC = 25℃: 200A; (4)PC, Collector Dissipation, when TC = 25℃: 541W; (5)Tj, Junction Temperature: –20 ~ +150℃.
Features
PM100CVA120-2 features: (1)100A, 1200V Current-sense IGBT for 20kHz switching; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage(P-FO available from upper leg devices); (4)Acoustic noise-less 22kW class inverter application; (5)UL Recognized.

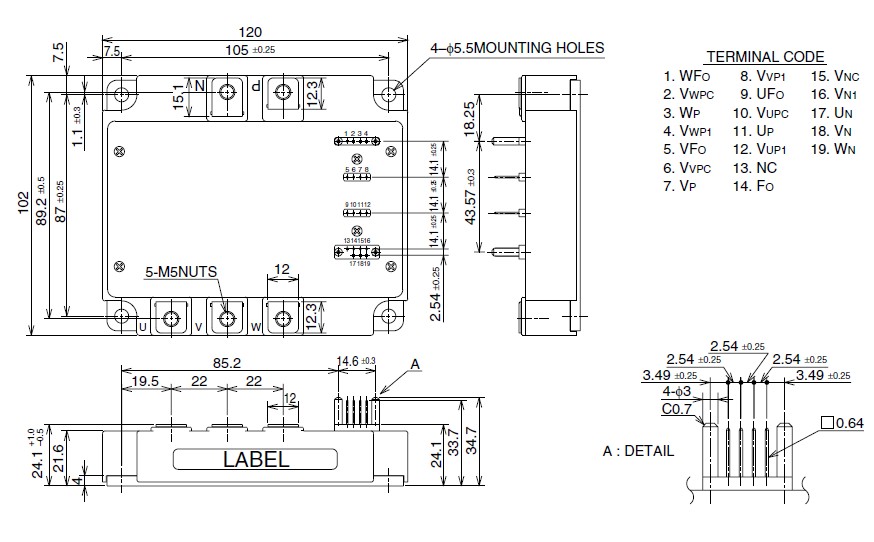

Diagrams
![]() |
