Product Summary

The EXB841 is a IGBT-driving hydrid IC.

Parametrics

EXB841 absolute maximum ratings: (1)Vcc: 25V; (2)Iin: 10mA; (3)Ig, when PW=2μs, duty≤0.05: 4.0A; (4)Viso, AC50Hz/60, 1 minut: 2500V; (5)Tc: -10 to +85℃; (6)Tstg: -25 to +125℃.

Features

EXB841 features: (1)t on when Vcc=20V, IF=5mA: 1.5μs; (2)t off when Vcc=20V, IF=5mA: 1.5μs; (3)VDD when Vcc=20V, IF=5mA: 8.5V; (4)tocp when Vcc=20V, IF=5mA: 1.0μs; (5)tALM when Vcc=20V, IF=5mA: 1.5μs; (6)VRB when Vcc=20V: 5V.

Diagrams

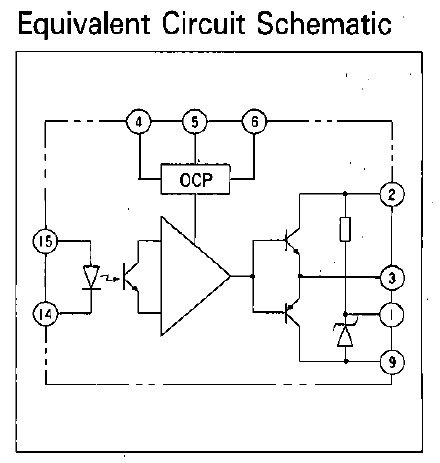

EXB841 equivalent circuit schematic
